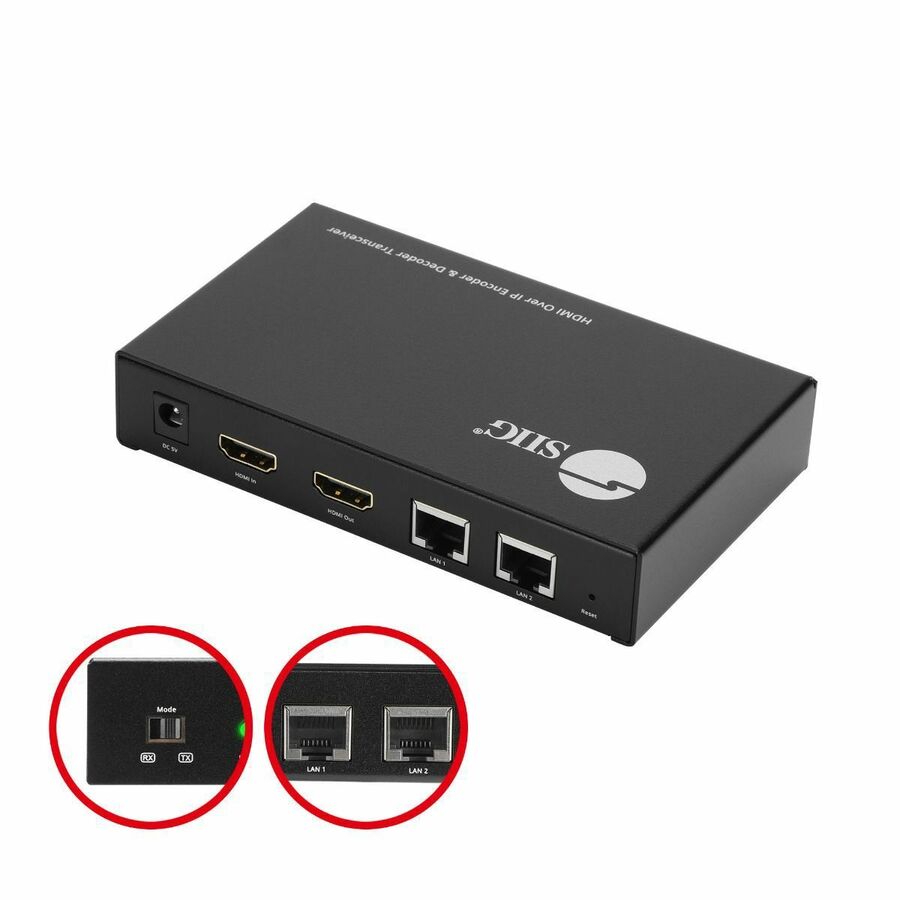

HDMI Over IP Encoder & Decoder Transceiver, Over IP Extender, TX/RX Mode Switching, 1080p, One to One 600ft, One to Many, Many to Many via VLAN, 2x RJ45 Supports cascading via LAN port directly or via LAN with IGMP gigabit switch, Cascading via HDMI Loopout, Audio Extraction and Embedded, Reset Button, Metal Housing, TAA Compliant
- This versatile HDMI over IP Encoder & Decoder Transceiver seamlessly integrates extender, splitter, and switcher functionalities into a single, powerful device, offering flexibility to configure as either an encoder or a decoder to save costs and simple setup
- Enabling seamless transmission and expansion of HDMI audio/video signals to remote 1080p@60Hz displays up to 600ft (180m) over Cat6/7 network cables, it supports one-to-many or easy cascading over HDMI cable for up to 5 levels, catering to a wide range of applications
- Flexible Configuration, Easy Expansion, and Costs Saving: By utilizing the same hardware for both encoding and
- Multiple Connection Modes, Highly Scalable: Works as a scalable Encoder/Decoder (TX/RX) matrix over a dedicated IP network, enabling the extension of HDMI signals to multiple displays. It offers four connection modes: 1 to 1, 1 to many, many to many via VLAN and Cascading
- In 1-to-1 connection mode, the transceiver extends HDMI signals up to 600ft (180m) over Cat6/7 network cabl
| Brand | |
|---|---|
| Brand | SIIG |
| Screen / Display | |
|---|---|
| Maximum Resolution | 1920 x 1080 |
| Screen Mode Supported | Full HD |
| Power & Battery | |
|---|---|
| Power Source | Power Adapter |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Functions | Video Switcher |
| Supported Video Modes | 1080i |
| Manufacturer | SIIG, Inc |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
SIIG HDMI Over IP Encoder & Decoder Transceiver, TX/RX Mode Switching, Cascading, 1080p, 1 to 1 600ft - SIIG HDMI Over IP Encoder & Decoder Transceiver - Over IP Extender - TX/RX mode slide switching - 1080p - One to One up to 600 ft / One to Many / Many to Many via VLAN - 2x RJ45 supports cascading via LAN port directly or via LAN with IGMP Gigabit Switch - Cascading via HDMI output - Audio extraction and embedded - Reset button - Metal housing - TAA compliant
