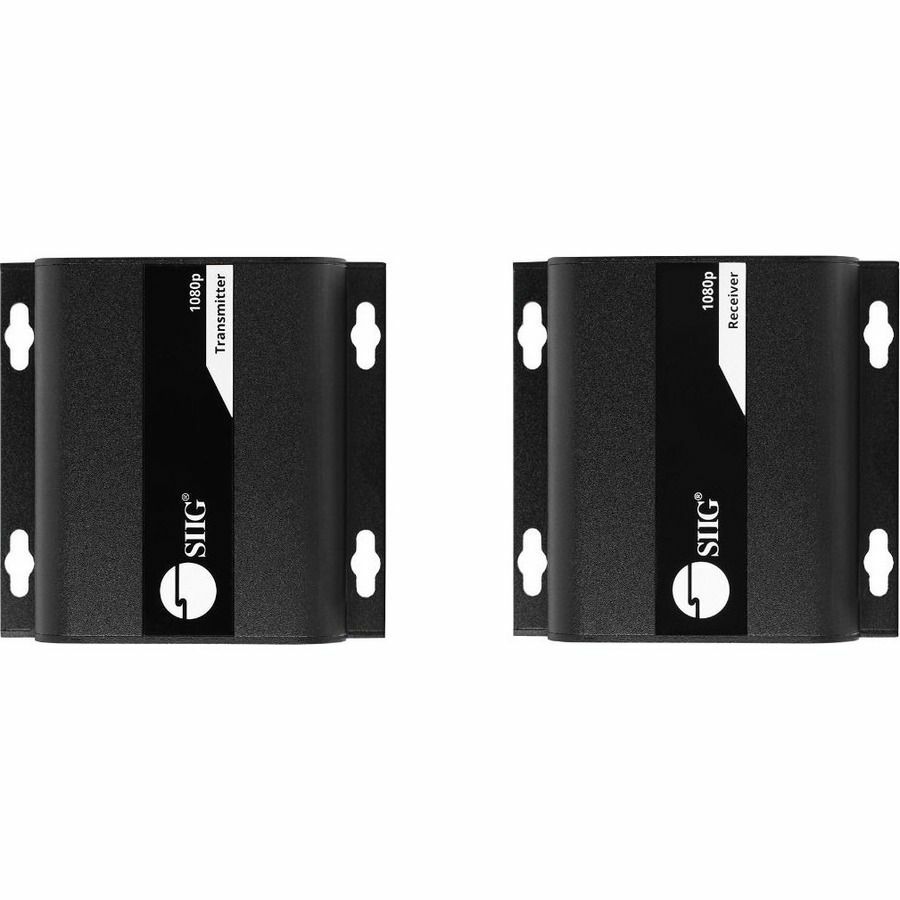

SIIG HDMI HDbitT Over IP Extender with IR - 120m

$ 139.99 $ 139.99
$ 139.99

$ 139.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Number of Network (RJ-45) Por
  • Brand Name
  • Manufacturer Part Number
  • Number of Input Devices Suppo
  • Number of Output Devices Supp
  • Connectivity Technology
  • HDMI Out
  • HDMI In
  • Number of HDMI Outputs
  • Number of HDMI Inputs
  • Network (RJ-45)
  • Twisted Pair Cable Standard
  • Remote (IR) Input
  • Remote (IR) Output
  • Form Factor
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Media Type Supported
  • Graphics Modes
  • Maximum Operating Distance
  • Supported Video Modes
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • Extends HDMI signals up to 394ft (120m) to a distant display over economical Cat6 cabling
  • Features direct 1-to-1 connection or 1-to-many connection through unmanaged dedicated Gigabit ethernet routers or switches. With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: Additional Receivers, part# CE-H26U11-S1, sold separately
  • Delivers crystal clear Full HD video content up to 1080p@60Hz resolution
  • IR remote control pass-through feature allows you to remotely control the HDMI source device at the display location
  • High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
  • Plug-n-Play installation, no software installation required
  • Built-in power led indicator provides easy power status monitoring
Brand
Brand SIIG
GPU / Graphics
Graphics Modes Full HD
Networking & Connectivity
Connectivity Technology Wired
HDMI Ports
HDMI Out Yes
HDMI In Yes
Number of HDMI Outputs 1
Number of HDMI Inputs 1
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 1920 x 1080
Input Devices
Number of Input Devices Suppo 1
Size / Dimensions
Transmitter Weight (Approxima 5.28 oz
Form Factor Wall Mountable
Receiver Width 3.70"
Receiver Weight (Approximate) 5.28 oz
Receiver Height 0.93"
Receiver Depth 3.81"
Transmitter Depth 3.81"
Transmitter Height 0.93"
Transmitter Width 3.70"
General Features
Number of Output Devices Supp 1
Maximum Operating Distance 393.70 ft
Supported Video Modes 1080p
Manufacturer SIIG, Inc
Misc Ports
Remote (IR) Input 1
Remote (IR) Output 1
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Twisted Pair Cable Standard Category 6
Compliance & Certification
Environmentally Friendly Yes
SIIG HDMI HDbitT Over IP Extender with IR - 120m - HDMI over Cat5e/6 Extender Kit - Full HD 1080p (1920x1080 60Hz) - HDMI HDbitT over IP Extender with IR- 394ft (120m)- TX to RX - One to one / One to Many Connection - Works with IGMP gigabit ethernet switch Hub - Support VLAN and cascade up to 256 units - IR Extension support full frequency for 20KHz to 60KHz- Reset Button - Aliminum Metal Housing - included 2x IR Extension cable - Wall Mountable - 2 years warranty
