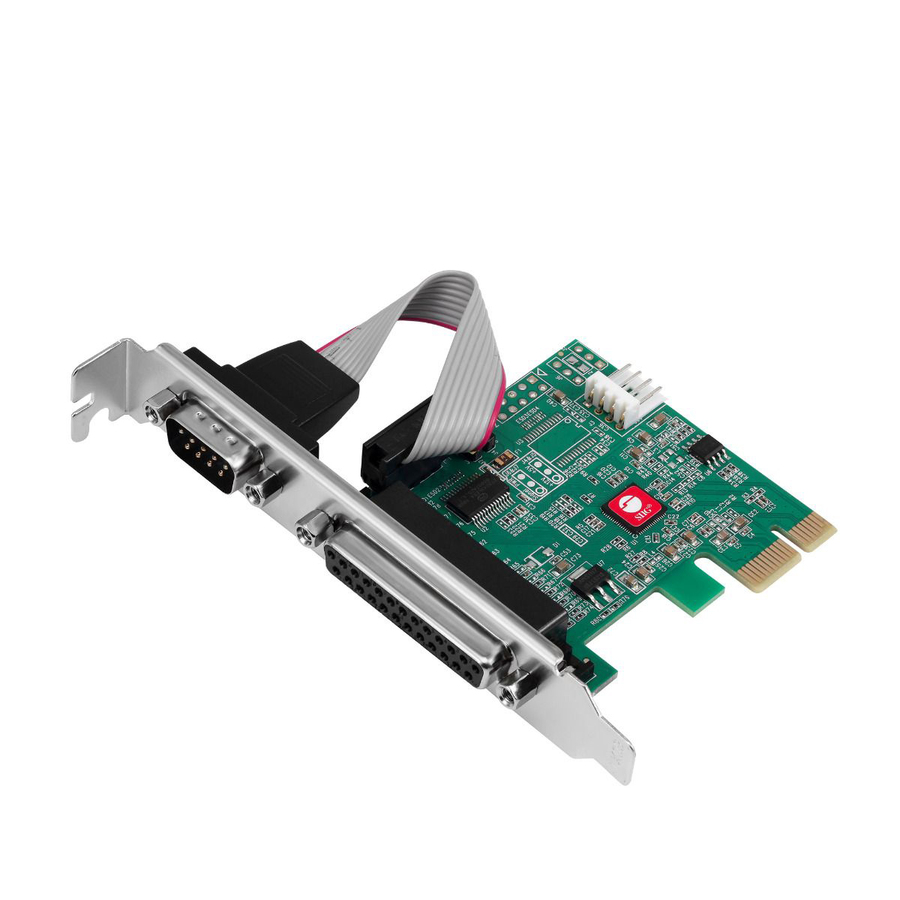

Adds one RS-232 serial port and one parallel port to a PCI Express enabled system
- Easily adds one serial port and one parallel port through an available PCI Express slot
- 16C650 UART serial port with data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
- Single-lane (X1) PCI Express end-point controller with PHY integrated
- Full serial modem control
- Hardware and software flow control
- 5, 6, 7, 8 and 9-bit serial format
- Even, odd, none, space and mark parity
- On chip 256 byte FIFO buffers in transmit, receive path
| Brand | |
|---|---|
| Brand | SIIG |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Full-height |
| General Features | |
|---|---|
| Manufacturer | SIIG, Inc |
| Misc Ports | |
|---|---|
| Number of Serial Ports (Exter | 1 |
| Number of Parallel Ports (Ext | 1 |
| Host Interface | PCI Express 2.0 x1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
