Allows you to select and switch between any of the 9 source devices (1 DisplayPort, 5 HDMI, 2 VGA, 1 HDBaseT) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio and IR control
- Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously
- Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4
- Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p
- Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p
- Device switching controllable via push buttons, IR remote, RS232 and GUI
- Supports Bi-directional IR control and RS232 pass-through
- Trouble free connection with display
- Connect single display to 9 sources
- Up to 4096 x 2160 video resolution
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| USB Ports | |
|---|---|
| Number of USB Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 5 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Connectivity (RJ-45 | 3 |
| Number of Connectivity (RJ-45) Ports | 3 |
| Connectivity (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 9 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Maximum Operating Distance | 328.08 ft |
| Manufacturer | SIIG, Inc |
| Number of Input Devices Supported | 9 |
| Video Ports | |
|---|---|
| Number of VGA Inputs | 2 |
| VGA In | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |

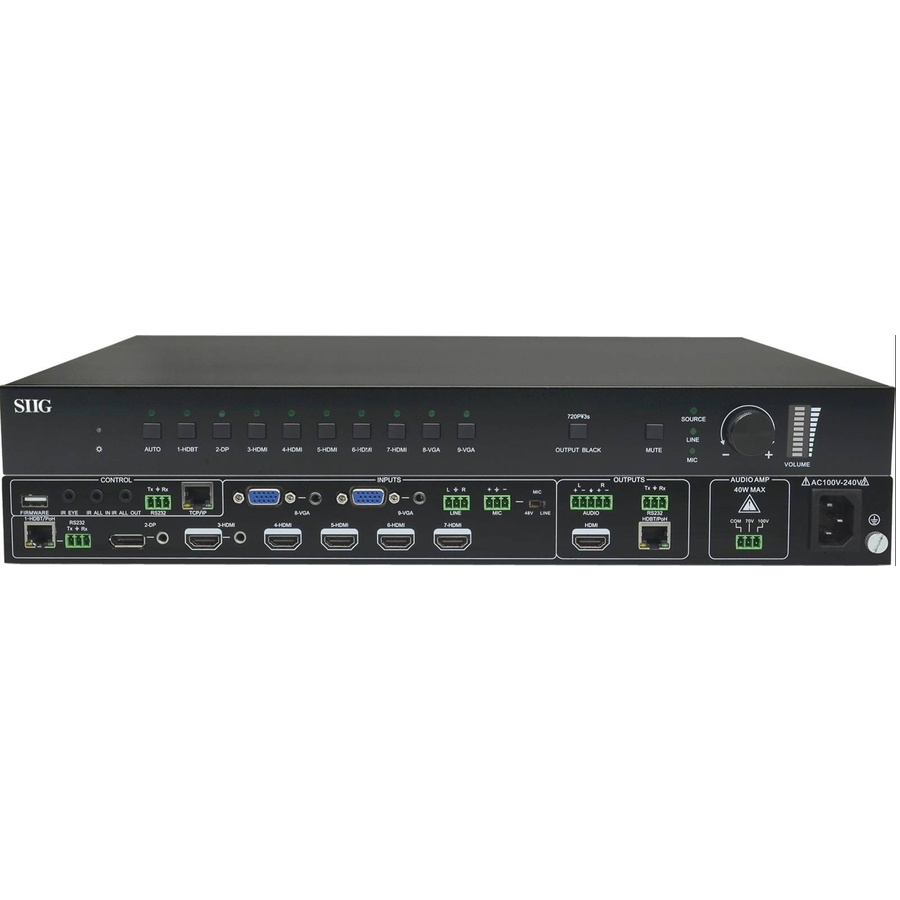

SIIG 9x1 HDBaseT 4K Scaler Switcher - 4096 x 2160 - 4K - Twisted Pair - 9 x 1 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort
