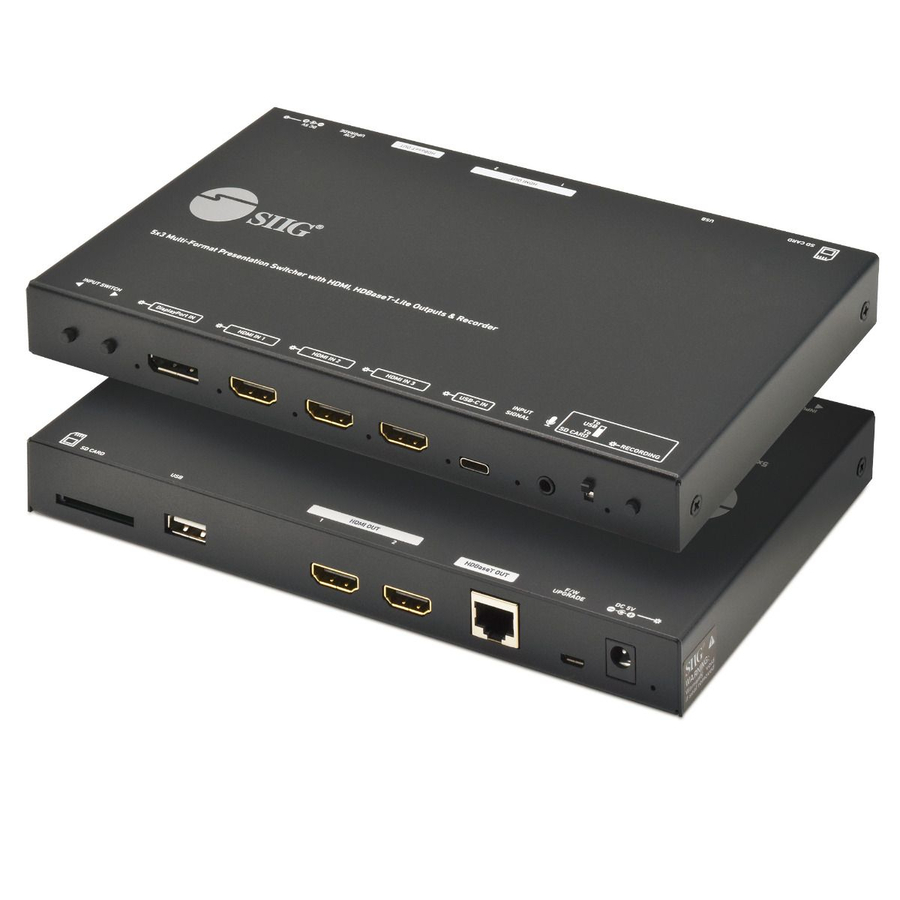

A multi-in-one presentation switcher with video/audio recorder functions in one compact device, five inputs (1 DisplayPort, 3 HDMI, 1 USB-C), two HDMI and one HDBaseT outputs, allows recording video and audio to USB flash drive or SD card
Features
- Multiple video inputs: 3 HDMI 2.0a, 1 DP1.2, 1 USB-C (DP Alt)
- Note: The adapter's USB-C input does not support smart phones
- Video Bandwidth up to 18Gbps
- Compliant with HDCP 2.2 and 1.4
- Input resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit
- Output resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit through HDMI and 4Kx2K@60Hz YUV 4:2:0 or 4K@30Hz YUV 4:4:4 8-bit via HDBaseT extender (not included)
- Support HDBaseT transmission distance up to 230ft (70m) from the HDMI source at Full HD 1080p 36-bit and 133ft (40m) at 4K@60Hz YUV 4:2:0
- Note: Requires HDBaseT Extender, sold separately
- Supports video and audio recording to the USB flash drive or SD memory card in the FAT32 and NTFS format.
- Note: DOES NOT record HDCP protected content
- Supports built-in and external microphone
- Supports xvYCC, x.v.Color and Deep color
- Allows switching inputs by front panel push buttons
- Front Panel LED indicators allows for source selection status, input signal status, and recording status
- Multiple video inputs: 3 HDMI 2.0a, 1 DP1.2, 1 USB-C (DP Alt)
- Note: The adapter's USB-C input does not support smart phones
- Video Bandwidth up to 18Gbps
- Compliant with HDCP 2.2 and 1.4
- Input resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit
- Output resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit through HDMI and 4Kx2K@60Hz YUV 4:2:0 or 4K@30Hz YUV 4:4:4 8-bit via HDBaseT extender (not included)
- Support HDBaseT transmission distance up to 230ft (70m) from the HDMI source at Full HD 1080p 36-bit and 133ft (40m) at 4K@60Hz YUV 4:2:0
- Note: Requires HDBaseT Extender, sold separately
- Supports video and audio recording to the USB flash drive or SD memory card in the FAT32 and NTFS format.
- Note: DOES NOT record HDCP protected content
- Supports built-in and external microphone
- Supports xvYCC, x.v.Color and Deep color
- Allows switching inputs by front panel push buttons
- Front Panel LED indicators allows for source selection status, input signal status, and recording status
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 3 |
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| USB Ports | |
|---|---|
| Number of USB Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 3 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Connectivity (RJ-45 | 1 |
| Connectivity (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 5 |
| General Features | |
|---|---|
| Maximum Operating Distance | 230 ft |
| Manufacturer | SIIG, Inc |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 5x3 Multi-Format Presentation Switcher & Recorder |
