Allows you to connect up to four 4K HDMI source devices and independently distribute any source to any of the four 4K HDMI displays with Auto Video Scaling
- Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously
- Easily switch between HDMI source and display using push button, IR remote control, RS-232, and Ethernet control and cloud control
- Works with Amazon Alexa Echo voice control for convenient device and display switching
- Supports 4Kx2K to 1080p resolution down scaling, down scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- Supports resolution up to 4Kx2K @60Hz YUV 4:4:4, 8bit and 4Kx2K @60Hz YUV 4:2:0 HDR 10bit
- Supports default EDID and EDID learning of the connected displays
- Fast HDMI link response time below 8 seconds when device switching
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- The included mounting ears allows easy and secure mounting on a wall or shelf
- Metal housing provides excellent RF shielding and heat dissipation for reliable performance and long life
- Use this audio video switchbox and eliminate the need to manually switch cables between sources
- Quickly and easily connect with the display
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 4 |
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| USB Ports | |
|---|---|
| Number of USB Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 4 |
| Number of HDMI Inputs | 4 |
| Ethernet Port | |
|---|---|
| Number of Connectivity (RJ-45 | 1 |
| Connectivity (RJ-45) | Yes |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | SIIG, Inc |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 4x4 HDMI 2.0 4K HDR Matrix Switch with Cloud Control |

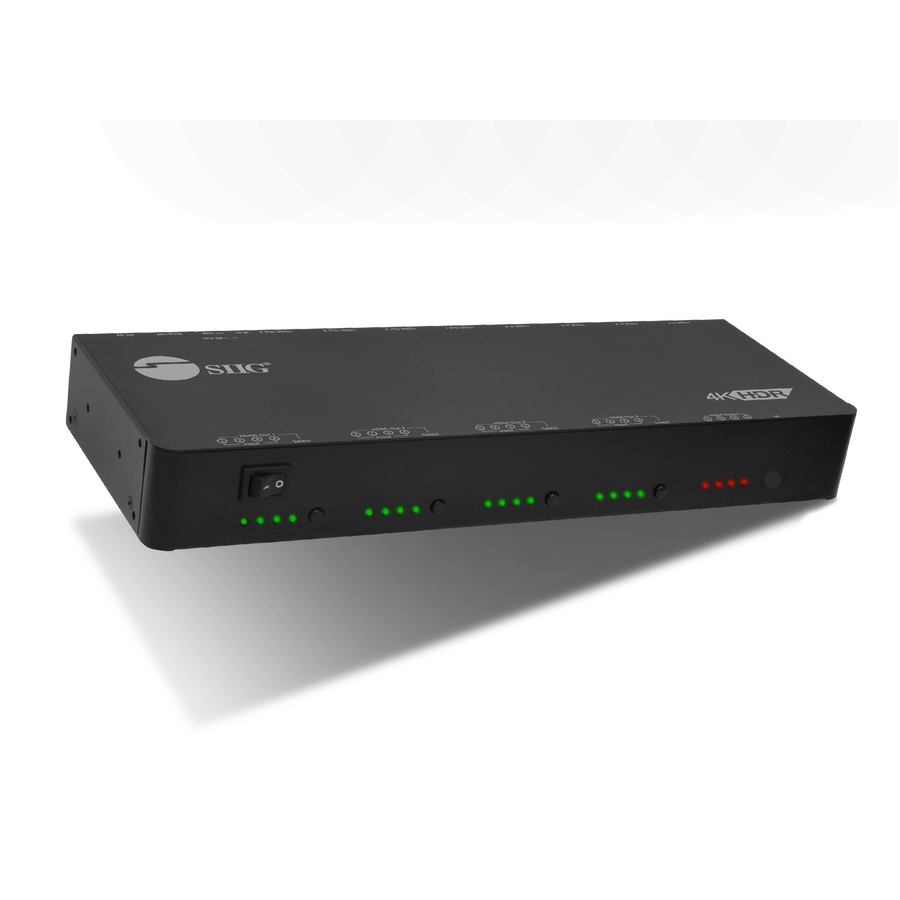

SIIG 4x4 HDMI 2.0 4K HDR Matrix Switch with Cloud Control - IR Remote RS232 - Downscaling Feature - TAA Compliant
