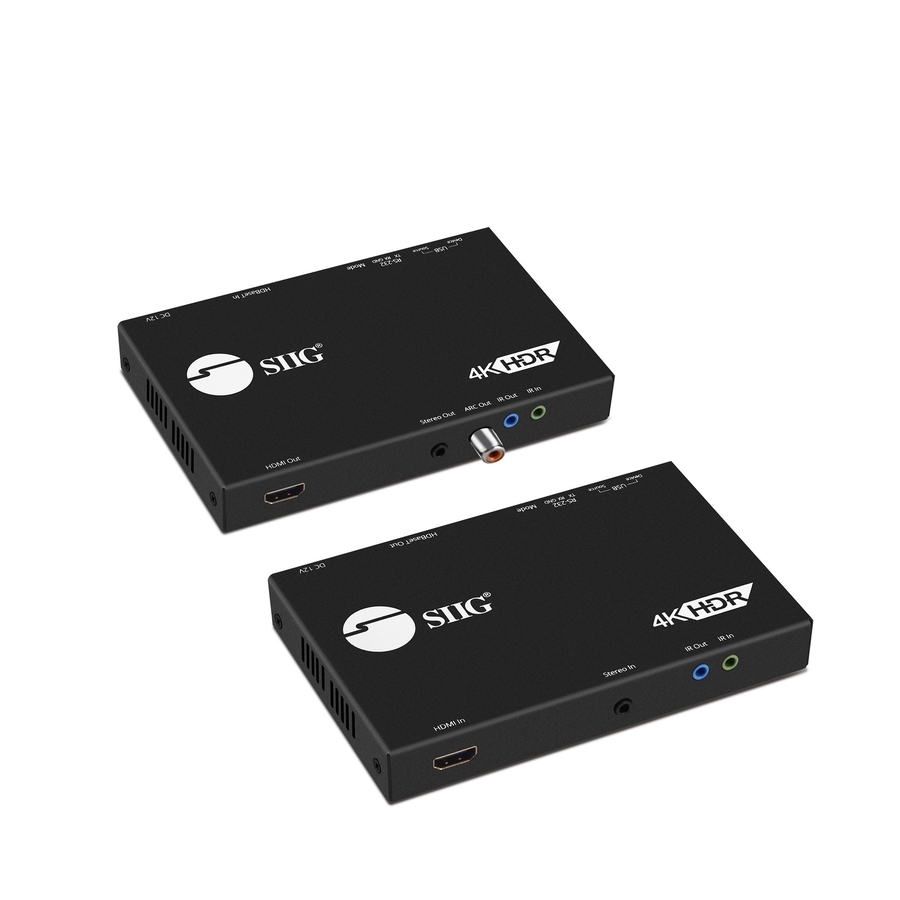

SIIG 4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR

448.99 448.99
448.99

448.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Number of Input Devices Suppo
  • Number of Output Devices Supp
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • HDMI Out
  • HDMI In
  • Number of HDMI Outputs
  • Number of HDMI Inputs
  • Network (RJ-45)
  • Twisted Pair Cable Standard
  • Serial Port
  • Form Factor
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Media Type Supported
  • Graphics Modes
  • Maximum Operating Distance
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Extends HDMI audio and video signals, USB 2.0, RS232 control, IR control up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

  • Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
  • Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
  • Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Supports USB 2.0 data transmission between the receiver and transmitter
  • Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
  • Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
  • High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
  • Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements

More from the Manufacturer

  • Audio support: DTS-HD Master Audio and Dolby True HD
  • Full Duplex USB 2.0 data transmission up to 480Mbps
  • Full Duplex RS-232 control up to 115200 bps through connector
  • Auto skew equalization
  • Video latency: <20µs
  • Video bandwidth up to 18Gbps (600MHz per channel)
  • Supports 3840x2160@60Hz 4:4:4 8bit
  • Supports 3840x2160@60Hz HDR 4:2:0 10bit
  • Compliant with HDMI 2.0 and HDCP 2.0
  • Supports EDID by pass, CEC, Deep Color
Brand
Brand SIIG
GPU / Graphics
Graphics Modes 4K
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 4
HDMI Ports
HDMI Out Yes
HDMI In Yes
Number of HDMI Outputs 1
Number of HDMI Inputs 1
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Input Devices
Number of Input Devices Suppo 1
Size / Dimensions
Transmitter Weight (Approxima 1.74 lb
Form Factor Wall Mountable
Transmitter Depth 5.91"
Transmitter Height 0.79"
Transmitter Width 3.74"
General Features
Number of Output Devices Supp 1
Maximum Operating Distance 328.08 ft
Manufacturer SIIG, Inc
Misc Ports
Serial Port Yes
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Cables
Twisted Pair Cable Standard Category 6
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
