Extracts 4K HDMI audio and splits it to analog stereo, Toslink optical digital, and Coaxial S/PDIF outputs
Features
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or
coaxial S/PDIF outputs - Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color
- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or coaxial S/PDIF outputs
- Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color
- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
| Brand | |
|---|---|
| Brand | SIIG |
| Screen / Display | |
|---|---|
| Maximum Resolution | 3840 x 2160 |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Audio Ports | |
|---|---|
| Audio Line Out | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Functions | Audio Compression |
| Manufacturer | SIIG, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |

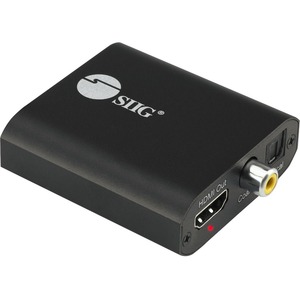

SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo/Toslink Optical/Coaxial S/PDIF - EDID Management - Uncompressed Formats Supported - Up to 4K30Hz 4:4:4 or 4K60Hz 4:2:0 - HDMI 4K input to HDMI 4K output with Audio extractor - 3.5mm for 2-ch stereo audio / Coaxial & Toslink for 5.1-ch - HDCP 1.4 - Aluminum housing - Micro USB power input - portable design easy setup & plug & play - 2 years warranty
