Multiple Connectivity Ports
Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)
Applications
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Digital signage
- Meeting room
- Trade show
- Library
- Show room
- Church
- Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency
- Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system
- Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
- The transmitter's HDMI loop-out allows for local monitoring of the extended display
- The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
- Lightning protection, surge protection, ESD protection
- Plug and play, no driver installation required
- High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240V |
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Remote Users Suppor | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 12.32 oz |
| Receiver Width | 6.02" |
| Receiver Weight (Approximate) | 12.32 oz |
| Receiver Height | 0.87" |
| Receiver Depth | 4.15" |
| Transmitter Depth | 4.15" |
| Transmitter Height | 0.87" |
| Transmitter Width | 6.02" |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Maximum Operating Distance | 229.66 ft |
| Manufacturer | SIIG, Inc |
| Device Type | KVM Extender |
| Number of Computers Supported | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support |

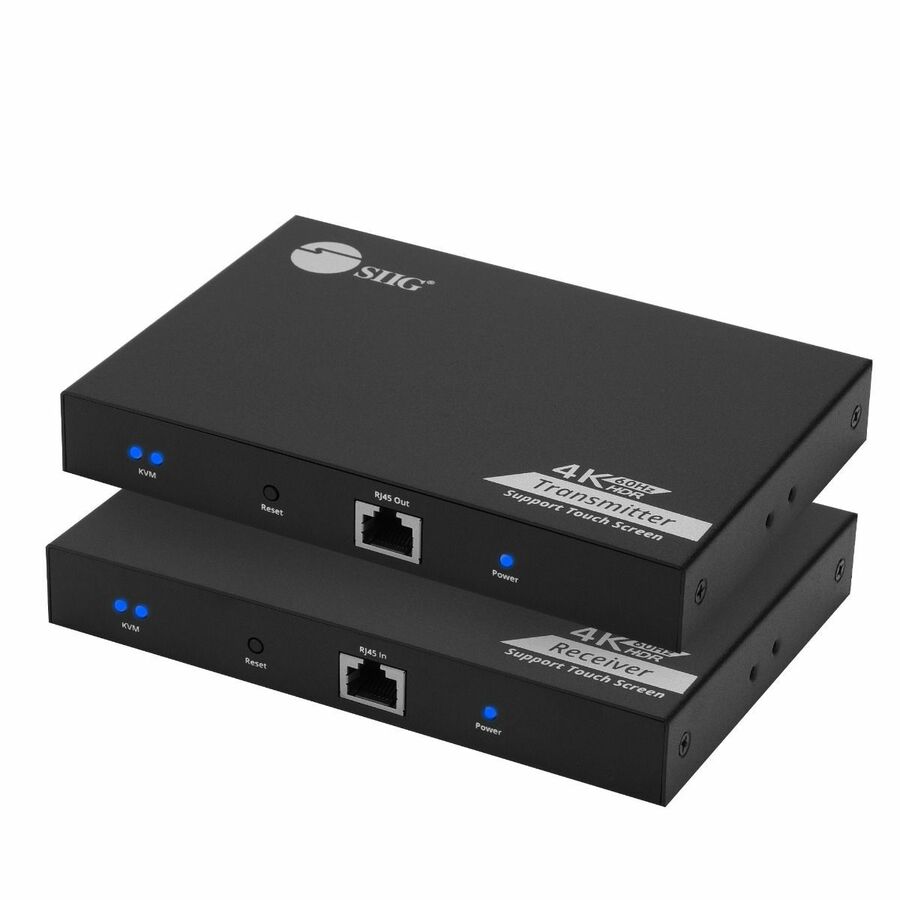

SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support - Extends/splits HDMI signals up to 230ft (70m) through RJ45 network with nearly zero latency - Supports HDMI loopout - Video resolution up to 4K@60Hz 4:4::4 and HDR YUV 4:2:0 10-bit - HDCP 2.2 - Come with USB 2.0 port for keyboard/Mouse and support touch screen - S/DIF port with PCM 2ch and 5.1ch - Protection of Lightning / Surge / ESD - Plug and play - no driver required - Metal housing - 2 years warranty
