Overview

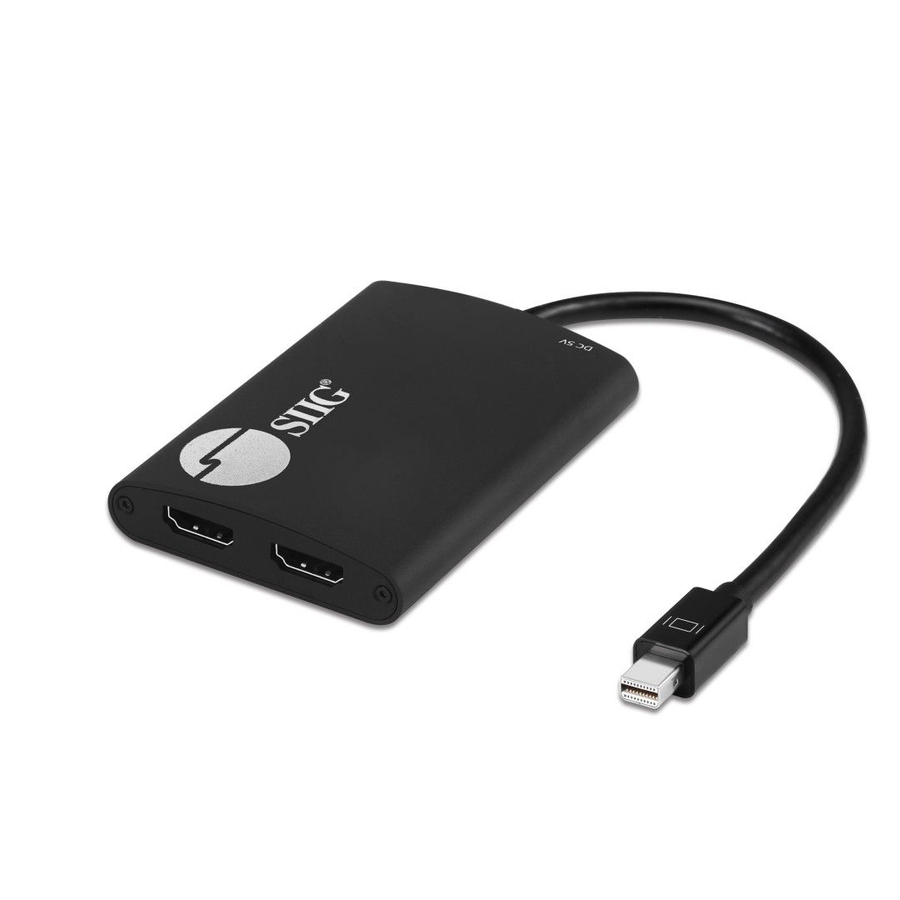

Allows you to connect 2 HDMI monitors to a single Mini DisplayPort 1.2 port with MST technology. TAA compliant
Features
Boost your productivity by connecting two HDMI displays to single Mini DisplayPort 1.2 output with Multi-Stream Transport (MST) technology - Mirror mode, Extended mode, and Panoramic Video Wall display mode
What is Multi Stream Transport (MST)?
Enables the source system to send multiple independent Video Signals over a single DisplayPort 1.2 or Mini DisplayPort 1.2 output. An MST Splitter allows the use of three different modes for multi-monitor displays, such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
Note:
1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
2. Panoramic Video Wall mode requires an AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter
3. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays)
4. Surface products only support up to 3 displays total, including the Surface screen
High Resolution
Supports UHD video resolutions up to single 3840x2160 (4Kx2K) @60Hz display or Dual 3840x2160 (4Kx2K) @30Hz displays
Mini DisplayPort (mDP) resolution can display the same maximum resolution as the original size DisplayPort (DP)
High Performance
Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound up to 192KHz sampling rate
Bandwidth Limitation
Total Available Bandwidth 21.6Gbps for 3840x2160 @60Hz (100%) *. 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%)
Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100%
Note:
- When the resolution of Display A and Display B is set to 3840 x 2160 @60Hz, one of them will be disabled
- If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays
Connectivity Port
Comes with one 20-pin Mini DisplayPort 1.2 input port, two 19-pin HDMI video output ports, one Micro USB for power input port (at least 5V/300mA)
Maximum Compatibility
Compatible with Mini DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround, or Intel Collage technology
Note: Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode
Supports Plug-n-Play, hassle-free set up without complicated hardware or driver installation
ESD Protection
An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device
TAA Compliant
Completely manufactured in a TAA designated country
Aluminum Housing Design
Premium aluminum housing provides efficient heat dissipation for reliable performance and long life
- To fulfill your signal requirement this hdmi splitter is a perfect choice
- Up to 3840 x 2160 video resolution.
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort
- Unhindered connections with USB devices are ensured by the built-in USB port
| Brand | |
|---|---|
| Brand | SIIG |
| Screen / Display | |
|---|---|
| Supported Resolution | 3840 x 2160 |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Inputs | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| General Features | |
|---|---|
| Data Transfer Rate | 21.6 Gbit/s |
| Manufacturer | SIIG, Inc |
| Cables | |
|---|---|
| Connector Type on Second End | HDMI Type A Digital Audio/Video - Female , Micro USB - Female |
| Connector on Second End Details | 1 x 5-pin Micro USB - Female , 2 x 19-pin HDMI Type A Digital Audio/Video - Female |
| Cable Type | HDMI/Micro-USB/Mini DisplayPort |
| Cable Characteristic | Splitter Cable |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender | Female |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
