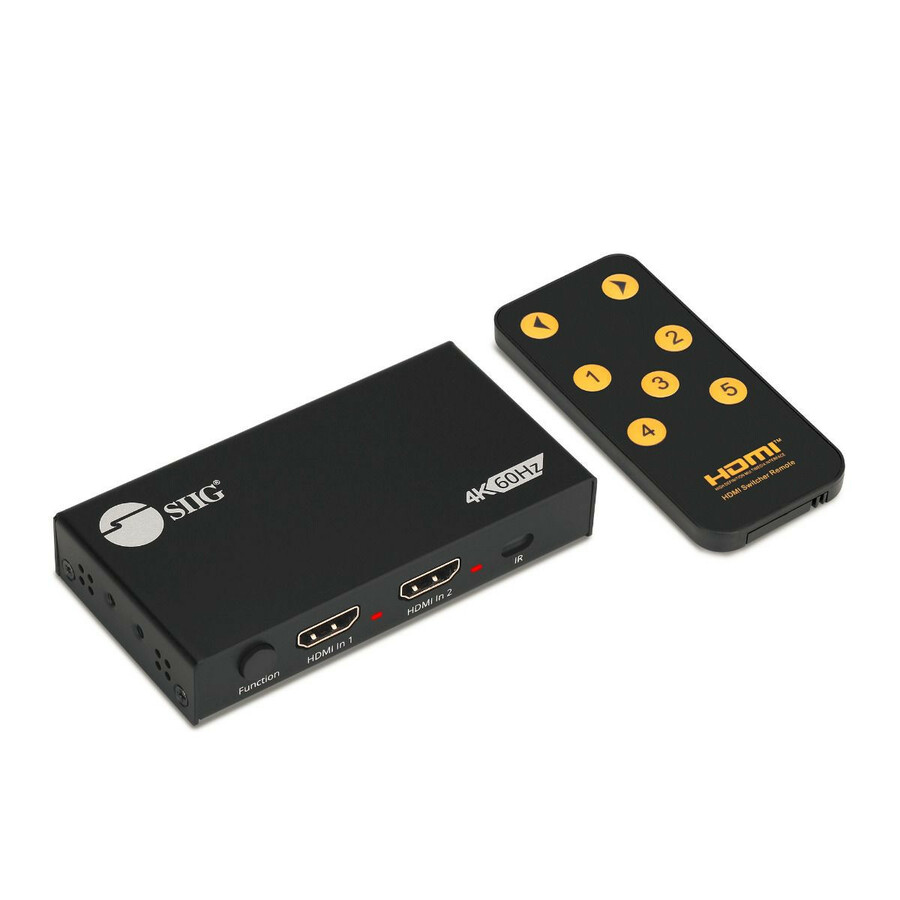

Share two 4K HDMI displays (mirror mode) between two 4K HDMI sources with IR remote control switching and EDID management
- Distributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only
- Auto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors
- High quality materials and metal housing extends the stability and durability, allowing for long hours of operation
- Built-in EDID management and firmware update mechanism further expands compatibility
- EDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes
- Individual LED indicators for power and EDID mode allow for easy and quick operating status
Compatibility Notes:
- 4K@30Hz monitors will display in 1080p @60Hz resolution
- Does not support 4K/60Hz YUV 422 down scaling
- The 2 HDMI outputs mirror each other, extended displays are not supported
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- HDMI interface allows you to connect to a variety of HD devices for the ultimate true high-definition video
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
- With USB port data can be moved between devices in fragments of a second
| Brand | |
|---|---|
| Brand | SIIG |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 2 |
| General Features | |
|---|---|
| Manufacturer | SIIG, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
