Distributes HDMI video/audio signals from one HDMI source to two HDMI displays with EDID management and video downscaling while maintaining signal quality
- Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bits Deep Color, Dolby Vision, and LPCM 7.1, Dolby TrueHD, Dolby digital Plus, Dolby Atmos, and DTS-HD Master Audio
- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
- High quality materials with metal housing extend the stability and durability, allowing for long hours of operation.
- Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility
- Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable and reliable performance and long life span
- Individual LED indicators for power and signal allow for easy and quick status recognition
Notes:
- 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz
- EDID Copy and Auto mode supports 4K downscaling to 1080p
- For HDCP 2.2 protected 4K source signals, if the TV supports HDCP 2.2 it will display at 4K resolution, otherwise, the TV will display at 1080p
- HDR, Dolby Vision, Dolby Atmos and 7.1ch supported via EDID Copy mode only
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- 3840 � 2160 resolution for high-quality video delivery
- HDMI interface allows you to connect to a variety of HD devices for the ultimate true high-definition video
| Brand | |
|---|---|
| Brand | SIIG |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 � 2160 |
| General Features | |
|---|---|
| Manufacturer | SIIG, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 2 Port HDMI 2.0 HDR Splitter with EDID and Downscaler |

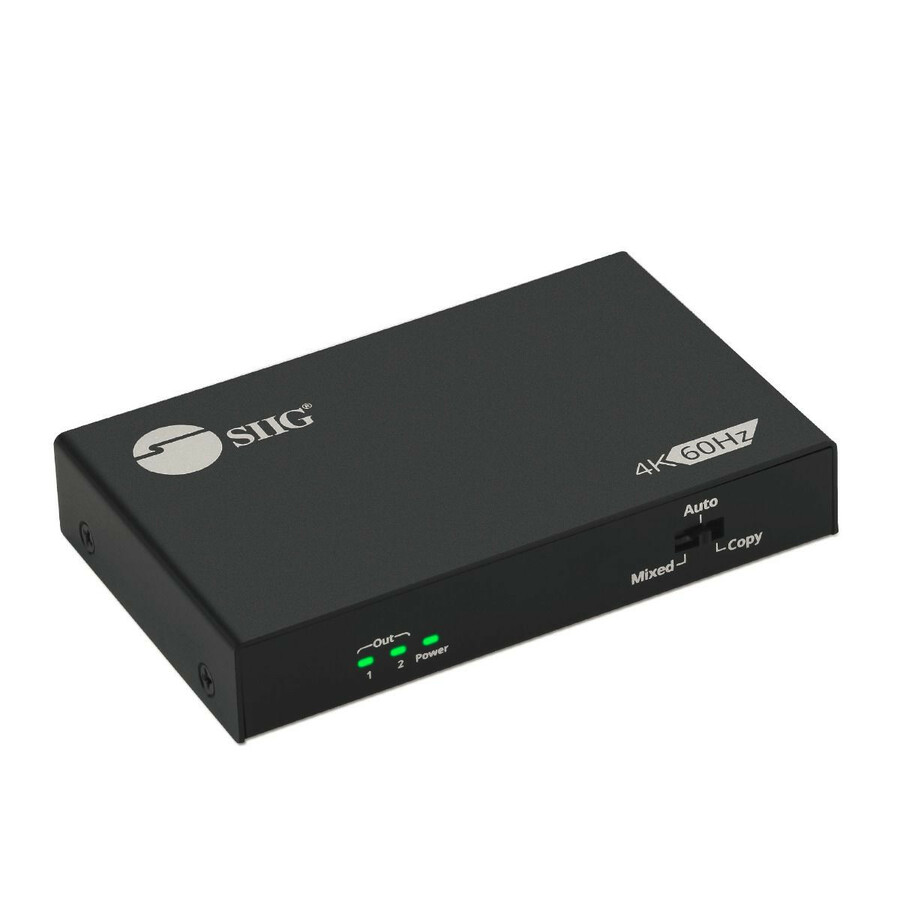

SIIG 2 Port HDMI 2.0 4K @60Hz HDR Splitter with EDID & Downscaler - Metal Housing for Stable & Reliable Performance - 18Gbps video bandwidth - 1x2 HDMI output - Up to 4K60Hz 4:4:4 8-bit or 4K60Hz 4:2:0 10 bit HDR - Compact Mini size - Auto/Mixed/Copy EDID selection - Downscaling from 4K 60Hz to 1080p 60Hz - HDCP 2.2/1.4 - 7.1 Ch audio - LED indicators - Micro USB for FW update and power in - included power supply and USB to Micro USB cable - 2 years warranty
