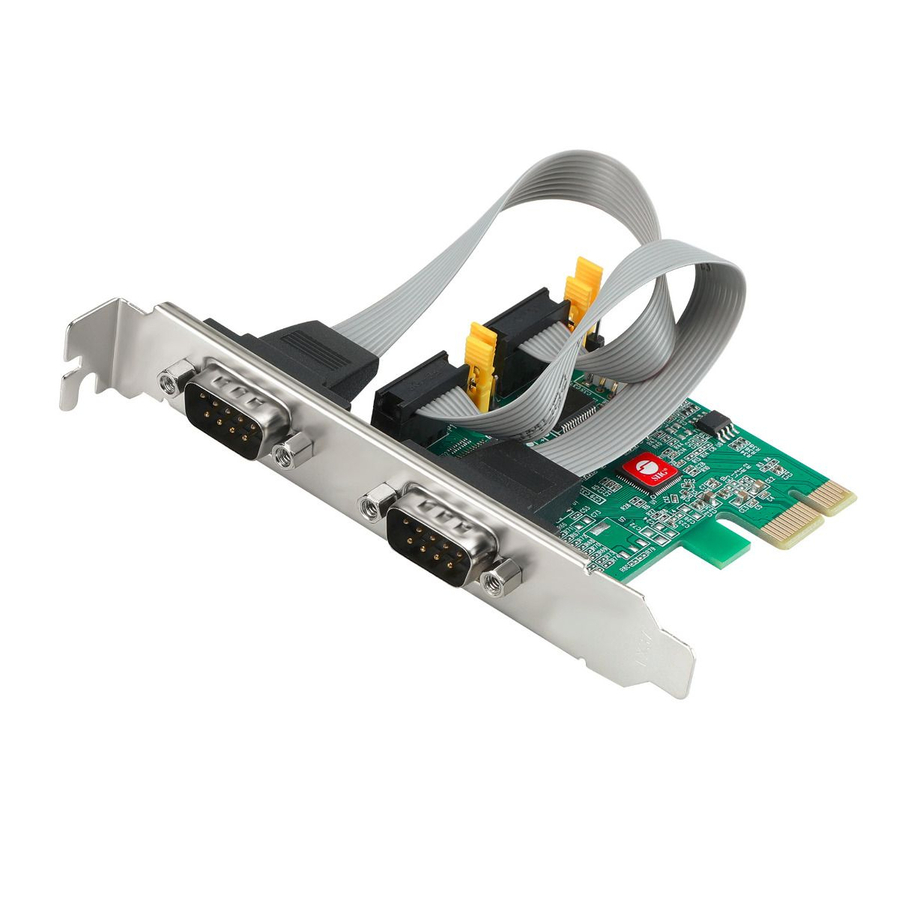

Add two 16650 RS232 ports to your PCI Express system
Features- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
- Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
| Brand | |
|---|---|
| Brand | SIIG |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Full-height/Low-profile |
| General Features | |
|---|---|
| Manufacturer | SIIG, Inc |
| Misc Ports | |
|---|---|
| Number of Serial Ports (Exter | 2 |
| Host Interface | PCI Express 2.0 x1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
