Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, eight HDMI video output ports, sixteen RJ45 network ports, nine 3.5mm IR emitter ports, nine 3.5mm IR receiver ports, eight S/PDIF ports, one RS-232 terminal block, one DIP switch, nine reset buttons, eight audio slide switches, one DC power jack (12V/2A) for TX, eight DC power jacks (5V/2A) for RXs
Applications
- Meeting room
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Library
- Show room
- 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 8 displays
- Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
- HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out for additional local display connections and extender 8 receivers for HDTV or Projector via Cat6/7 cable
- EDID Management - Support EDID management capability to controls the resolution output to the display(s)
- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
- RS-232 Control - Support RS-232 command control in the Transmitter
- Protection - Lightning Protection, Surge Protection, ESD Protection
- High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 9 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 16 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 16 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.61 lb |
| Receiver Width | 4.15" |
| Receiver Weight (Approximate) | 8.64 oz |
| Receiver Height | 0.79" |
| Receiver Depth | 4.04" |
| Transmitter Depth | 4.72" |
| Transmitter Weight (Approximate) | 1.61 lb |
| Transmitter Height | 0.91" |
| Transmitter Width | 10.39" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 8 |
| Frequency | 60 Hz |
| Maximum Operating Distance | 229.66 ft |
| Manufacturer | SIIG, Inc |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 8 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 7 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |

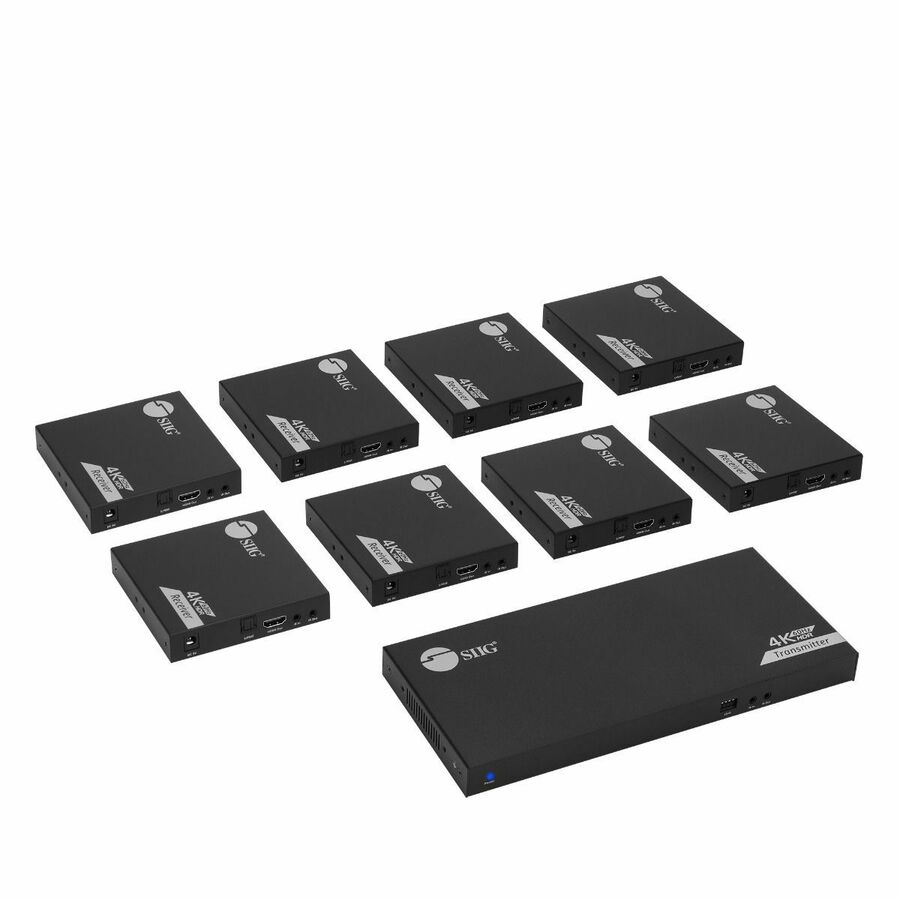

SIIG 1x8 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency - HDMI 1 in 1 out & 8 Ext - 1x4 HDMI 4K60Hz Splitter - 8 port HDMI Splitter - HDMI over Cat6/7 Extender - HDR - HDCP 2.2 - 7.1ch audio- HDMI Loopout - Bi-directional IR Extension - S/PDIF audio extraction or ARC audio - DIP Switch - RE-232 Control - EDID Management - Wall mountable - Power adapter / IR cable included - ESD protection - Metal housing - 2 years warranty
