Duplicates and splits one 12G SDI input into four 12G SDI outputs for real time simultaneous multi-viewing
- Handy tool duplicates and splits one 12G SDI input into four 12G SDI outputs
- Input signal automatic equalization technology provides transmission distance of 180m (594ft) @3G, 100m (330ft) @6G and 70m (230ft) @12G using Belden 1694A cable
- Transmits ancillary data and embedded audio signals
- Built-in re-clocking and equalization features provides the best performance and maintains signal integrity without signal loss
- Re-clocking SDI signal technology is the perfect solution for cascading multiple units for longer transmission distances
- LED indicators for signal lock and video rate notification
- Inter-locking power supply for safe reliable power connection
- Metal housing provides durability and minimizes EMI/RF interference for long life and dependable performance
- Plug and play, no software installation required
- Distribute/amplify audio to the required distance without signal degradation with this audio distribution amplifier
- With USB port data can be moved between devices in fragments of a second
| Brand | |
|---|---|
| Brand | SIIG |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| General Features | |
|---|---|
| Maximum Operating Distance | 590.55 ft |
| Manufacturer | SIIG, Inc |
| Video Ports | |
|---|---|
| BNC Out | Yes |
| BNC In | Yes |
| Number of BNC Outputs | 4 |
| Number of BNC Inputs | 1 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

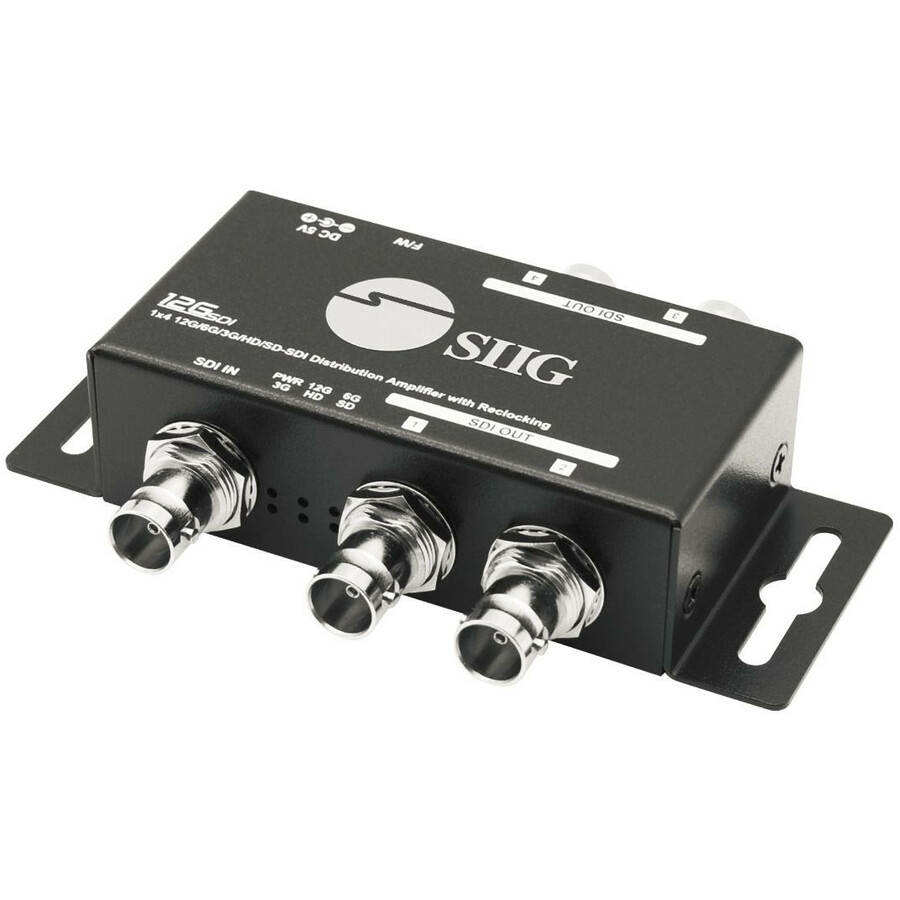

SIIG 1x4 12G SDI Distribution Amplifier - 70M - Built-in Re-clocking & Equalization Features TAA Compliant
