- Support multiple video decoding: H.265 mainstream, H.264 basic, mainstream and advanced quality, MJPEG/JPEG basic quality
- Broadcast resolutions supports up to 1080p@60Hz 4:4:4 8 bit, and support HDCP 1.4
- Supports RTSP / HLS / RTMP (S) / RTP / UDP protocols
- Audio coding format supports AAC, AAC+, AAC++/AC3/MP2/MP3
- Maximum supports 2 channel video stream decoding, supports 1 channel only audio stream decoding
- Preview your incoming HDMI signal via the local HDMI pass-thru output port
- Support CBR/VBR two coding modes, maximum code rate up to 40Mbps (Main code stream is 40M, Sub-code stream is 8M)
- Support analog audio extraction and analog audio embedded
- High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation
| Brand | |
|---|---|
| Brand | SIIG |
| Screen / Display | |
|---|---|
| Maximum Resolution | 1920 x 1080 |
| Screen Mode Supported | Full HD |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Audio Line Out | Yes |
| Audio Line In | Yes |
| General Features | |
|---|---|
| Functions | Audio Embedding |
| Video Formats | JPEG |
| Manufacturer | SIIG, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |

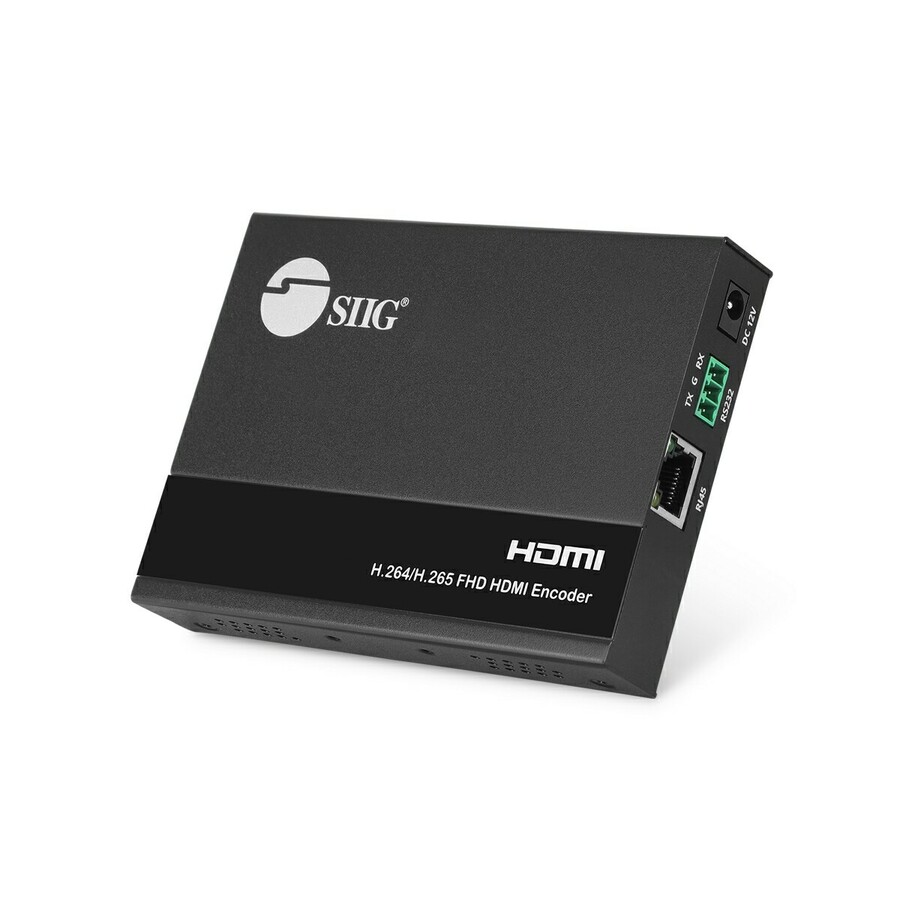

SIIG 1080p HDMI Video H.264 H.265 IPTV Encoder with Loopout - Supports RTSP / HLS / RTMP (S) / RTP / UDP Protocols - Supports CBR/VBR Two Coding Modes
