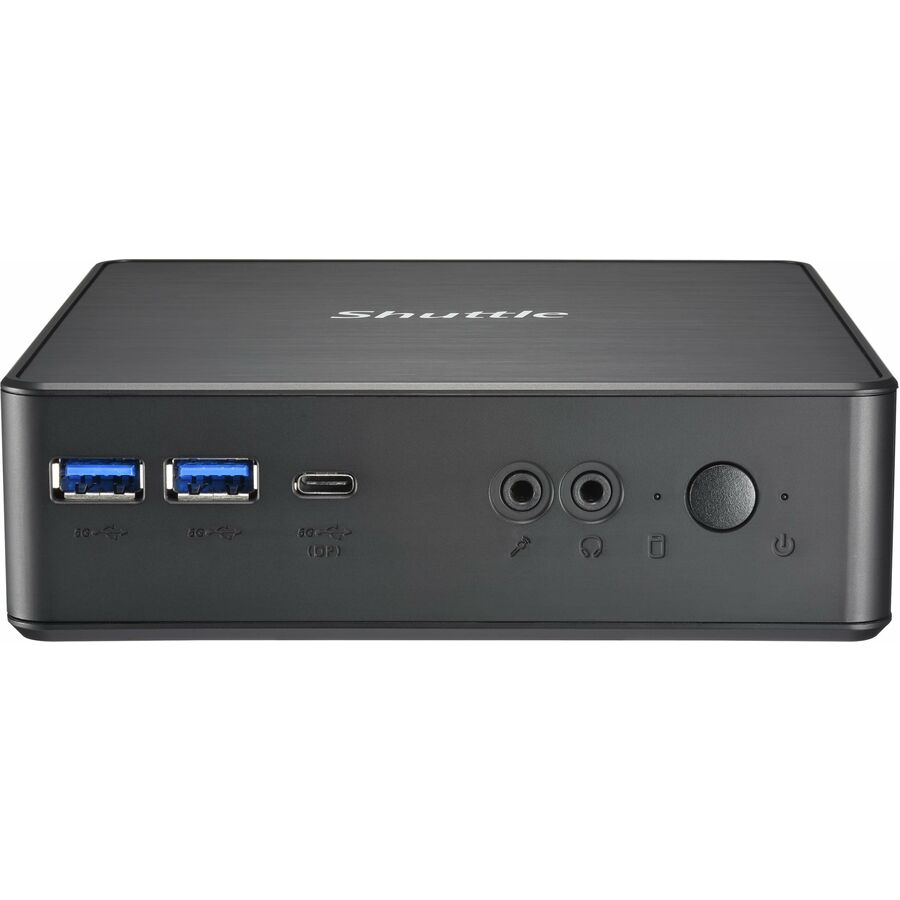

MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
- Core i7 1.70 ghz processor delivers the speed and power to explore new possibilities and experiences
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Windows 10 OS support offers a dependable, user-friendly interface for easy app usage and maximum productivity
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- 12th Gen processor generation delivers performance upgrades for improved productivity and immersive entertainment
- Featuring 7 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- Deca-core (10 Core) processor core enables multitasking with reliable performance and fast processing speed
- DDR4 SDRAM slot synchronizes signals for efficient data throughput, ensuring fast and reliable system performance
- 1.70 GHz processor speed provides effi
| Brand | |
|---|---|
| Brand | Shuttle |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Model | i7-1255U |
| Processor Generation | 12th Gen |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 1.70 GHz |
| Maximum Turbo Speed | 4.70 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Inter | PCI Express NVMe 4.0 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 65 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 7 |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI (Rear) | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Maximum Height Adjustment (Above) | 1.7" |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Frequency | 60 Hz |
| Controller Type | NVMe |
| Manufacturer | Shuttle, Inc |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 1 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 1 |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Brand | Shuttle, Inc |
| UPC/GTIN | 887993005874 |
| MPN | NC40U7 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
