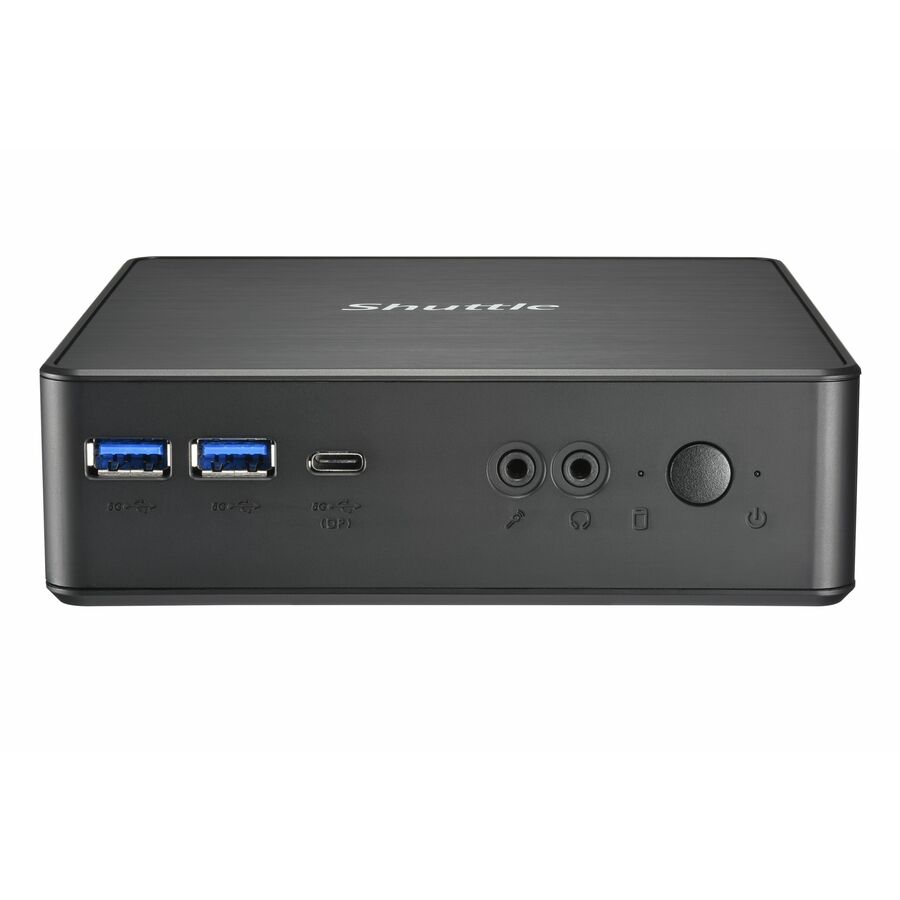

MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
- Core i5 processor ensures timely and efficient performance for everyday computing needs
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Windows 10 OS support offers a dependable, user-friendly interface for easy app usage and maximum productivity
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- 12th Gen processor generation offers more threads and higher clocks for faster, optimized system performance
- With 7 USB ports, connect or disconnect devices without shutting down the system for convenience
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- Deca-core (10 Core) processor core efficiently handles data for quicker information transfer and smooth performance
- DDR4 SDRAM slot synchronizes signals for efficient data throughput, ensuring fast and reliable system performance
- 1.30 GHz processor speed delivers optimal performa
| Brand | |
|---|---|
| Brand | Shuttle |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Model | i5-1235U |
| Processor Generation | 12th Gen |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 1.30 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Inter | PCI Express NVMe 4.0 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 1 |
| Maximum Power Supply Wattage | 65 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 7 |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI (Rear) | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Frequency | 60 Hz |
| Controller Type | NVMe |
| Manufacturer | Shuttle, Inc |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 1 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 1 |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Brand | Shuttle, Inc |
| MPN | NC40U5 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
