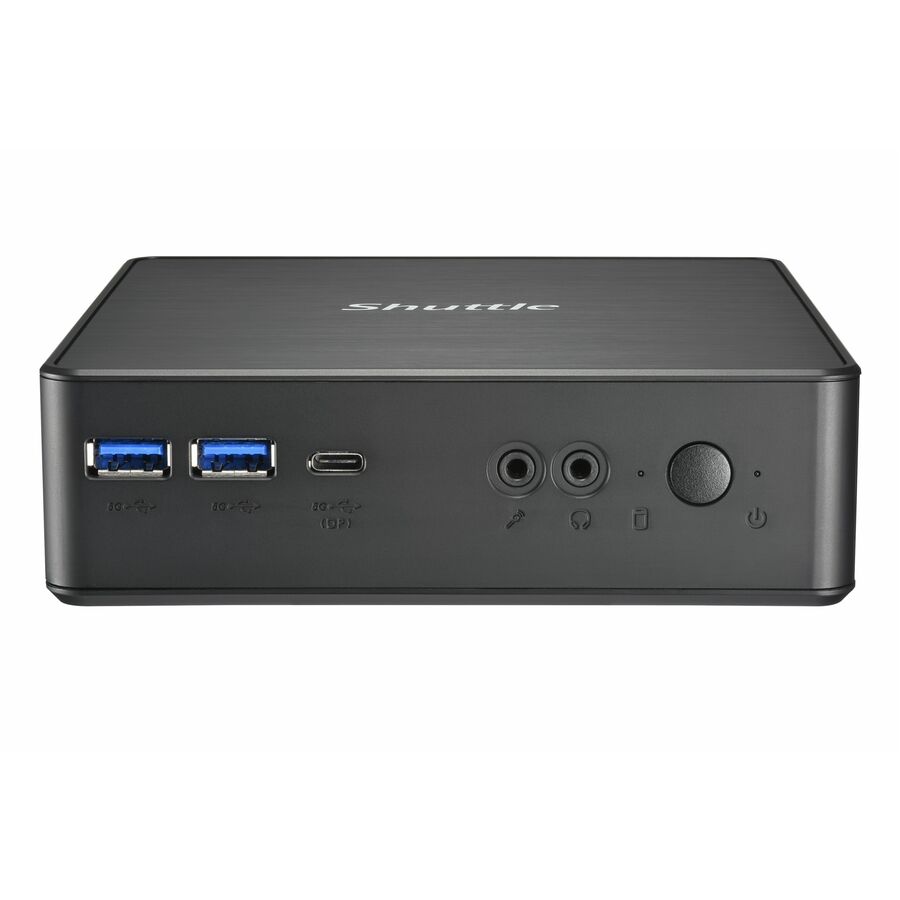

MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
- Core i3 1.20 GHz processor handles computational tasks efficiently for smooth and reliable performance
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Windows 10 x64 OS support includes creative and productive tools you need for smooth workflows
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- 12th Gen processor generation offers more threads and higher clocks for faster, optimized system performance
- Provides 7 USB ports for responsive and expanded device connections without interruptions
- Gigabit Ethernet increases data transfer capacity, delivering better overall performance for demanding network tasks
- Hexa-core (6 Core) processor core enables multitasking with reliable performance and fast processing speed
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
- 1.20 GHz processor speed ensures smooth performance with
| Brand | |
|---|---|
| Brand | Shuttle |
| CPU / Processor | |
|---|---|
| Processor Type | Core i3 |
| Processor Model | i3-1215U |
| Processor Generation | 12th Gen |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 1.20 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Inter | PCI Express NVMe 4.0 x4 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 65 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 7 |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI (Rear) | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Maximum Height Adjustment (Above) | 1.7" |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Frequency | 60 Hz |
| Controller Type | NVMe |
| Manufacturer | Shuttle, Inc |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Brand | Shuttle, Inc |
| UPC/GTIN | 887993005898 |
| MPN | NC40U3 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
