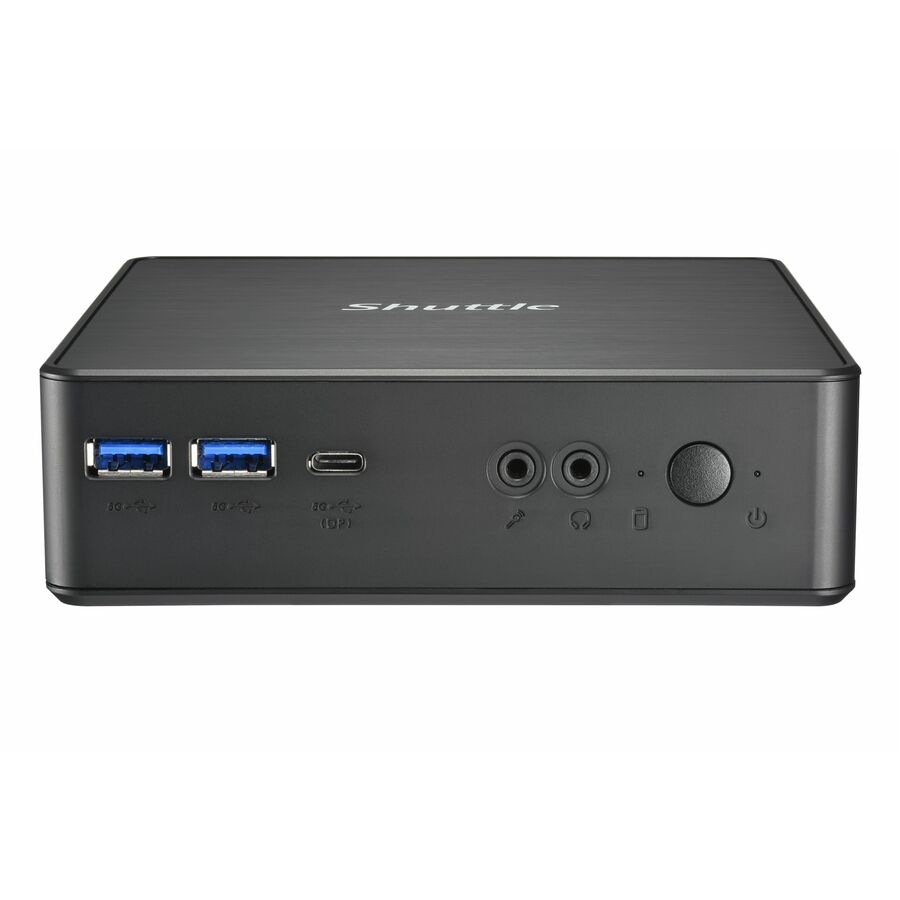

MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
- Celeron 1.10 GHz processor handles computational tasks efficiently for smooth and reliable performance
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Windows 10 x64 OS support includes creative and productive tools you need for smooth workflows
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- With 7 USB ports, connect or disconnect devices without shutting down the system for convenience
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- Penta-core (5 Core) processor core enables multitasking with reliable performance and fast processing speed
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
- 1.10 GHz processor speed ensures smooth performance without slowdowns or crashes during demanding tasks
| Brand | |
|---|---|
| Brand | Shuttle |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 7305 |
| Processor Core | Penta-core (5 Core) |
| Processor Speed | 1.10 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| RAID Levels | 0 , 1 |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Inter | PCI Express NVMe 4.0 x4 |
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 65 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 7 |
| USB Type-C (Front) | Yes |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI (Rear) | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Frequency | 60 Hz |
| Controller Type | NVMe |
| Manufacturer | Shuttle, Inc |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
