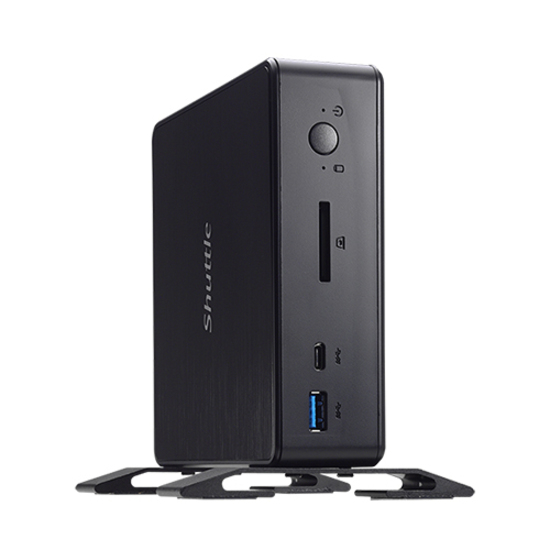

Palm-sized, 4K Capable Box PC with New Whiskey Lake
The NC10U series is a palm-sized, 4K capable and low-power PC with the new Intel Whiskey Lake-U processor. A selection of Intel 8th generation ULV processors not only provides higher performance but also affords minimal power consumption. Room for up to 32 GB of DDR4 RAM allows you to increase system performance easily. Built-in HDMI 2.0a and DisplayPort outputs added the ability to drive dual 4K UHD displays. Despite its tiny body of 0.8 liters, the NC10U series still packs excellent connectivity - USB 3.2 Gen1, USB 2.0, RS232, M.2, SATA 6Gbps, Giga LAN and WiFi module. Besides, one 2.5" drive as well as one M.2 SSD card can be installed. Perfect for a variety of uses in Home/Work PC, HTPC, and Digital Signage.
Intel® 8th Generation Processors
The NC10U series is powered by the 8th Generation Intel® Celeron® ULV processor (Whiskey Lake-U) and with built-in memory controller as well as integrated UHD graphics to provide better system efficiency and graphics performance.
Easy installation
The NC10U series is designed for easy configuration. Users can simply open both upper and lower covers to easily install memory module, HDD, and other components.
4K UHD Experience
The NC10U series features HDMI 2.0a to support 4K (4096 x 2160) resolution at 60FPS as well as the transmission of HDR video, allowing for vivid streaming and more accurate color.
Rich I/O for Connectivity
In addition to HDMI and DisplayPort, the NC10U series provides multiple I/O options including RS232, USB 2.0, USB 3.2, and SD Card Reader. One built-in USB 3.2 Type-C offers users with more convenience with no up or down orientation required for plugs.
Exclusive Cooling Technology
Shuttle's heat-pipe cooling system with smart fan design allows for constant air circulation between the inside and outside of the machine, which guarantees high stability and low noise during long term operation.
VESA Mount Ready
The NC10U series is VESA mount compatible and capable of mounting to the rear of a monitor or a TV, which fits seamlessly into any office, home or commercial environment.
The Watchdog
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle's Watch Dog utility to maintain normal operation and stability of the system at all times.
Space for 2.5" HDD/SSD
Despite its tiny body, the NC10U series allows easy installation of up to 1x 15mm (7/9.5/12.5/15mm) 2.5" HDD/SSD to provide a more flexible storage capacity without volume restriction.
Dual Display Productivity
The NC10U series includes HDMI and DisplayPort to support dual-screen displays to increase productivity and efficiency.
High-speed Storage Interfaces
With native M.2 2280/2260/2242 Type M slot, the NC10U series offers considerably faster storage performance and expansion capacity for M.2 SSD or other compatible devices.
Wired and Wireless Networks
The NC10U series has excellent network connectivity powered by Intel® i211 Gigabit LAN and supports fast speed WiFi IEEE 802.11 b/g/n with wireless module built-in.
Operable in 0-50°C
The NC10U series uses industrial capacitors to meet the environmental operation demands of commercial applications.
- Core i5 1.60 GHz processor handles computational tasks efficiently for smooth and reliable performance
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Mini PC form factor simplifies usage and boosts efficiency, making setup and operation more convenient
- 8th Gen processor generation delivers performance upgrades for improved productivity and immersive entertainment
- Connect USB-enabled devices via 4 USB ports for seamless data sharing and reliable performance
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
- Wireless LAN provides stable, high-speed connections for efficient data sharing and uninterrupted workflow
- 1.60 GHz processor speed delivers optimal performance with fast, consistent, and reliable results
- Security Slot feature boosts productivity with dependable performance for demanding computing tasks
| Brand | |
|---|---|
| Brand | Shuttle |
| CPU / Processor | |
|---|---|
| Processor Type | Core i5 |
| Processor Model | i5-8265U |
| Processor Generation | 8th Gen |
| Processor Speed | 1.60 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 32 GB |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 65 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| USB Ports | |
|---|---|
| Number of USB 3.1 Gen 2 Ports | 1 |
| Total Number of USB Ports | 4 |
| USB Type-C (Front) | Yes |
| Number of USB 2.0 Ports (Rear) | 2 |
| HDMI Ports | |
|---|---|
| HDMI (Rear) | Yes |
| DisplayPort | |
|---|---|
| DisplayPort (Rear) | Yes |
| Number of DisplayPort Outputs | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini PC |
| VESA Mount Standard | 75 x 100 |
| General Features | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
