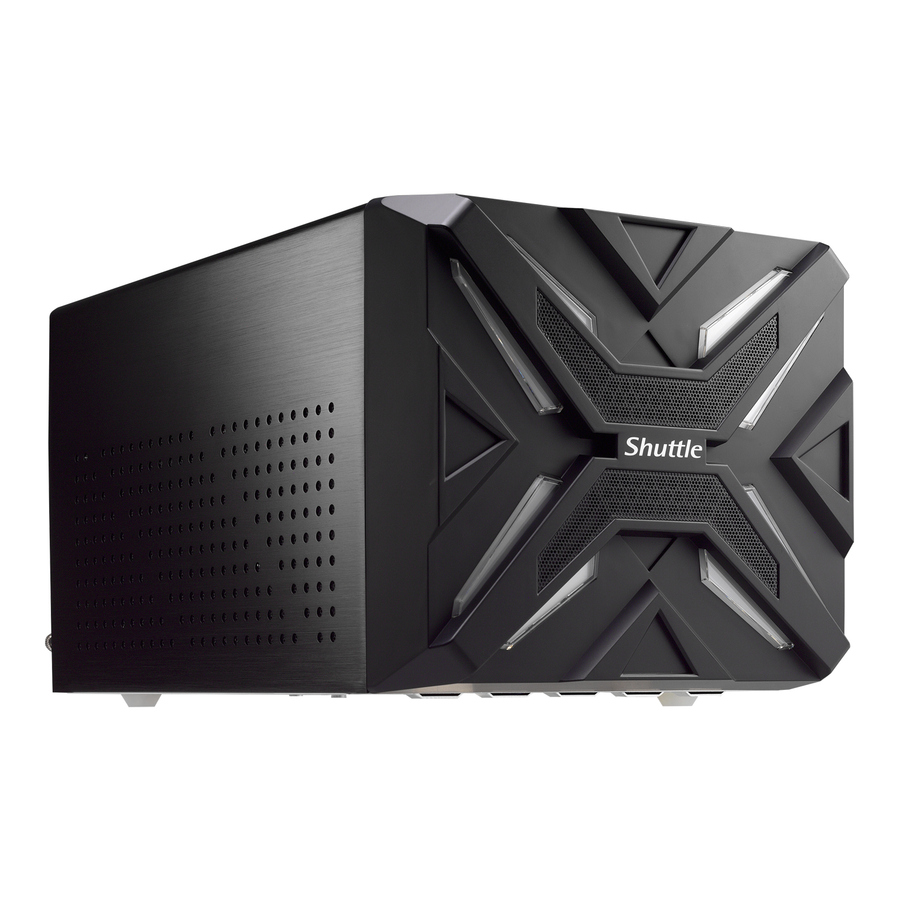

Light up the BattlefieldThe Compact, Powerful Gaming PC
Shuttle, the leading mini-PC designer, introduces its new Gaming Mini-PC model SZ270R9, that supports the 7th Gen Intel® Core™ i7 processor and delivers the best performance for gaming and VR. With RGB lighting technology, the all-new R9 represents your lifestyle with a lightning-bolt design and customizable color scheme. Created for performance enthusiasts, the SZ270R9 provides dedicated XPC Overclock Software and a Turbo button on the top of the front panel for real-time overclocking using a single button. Small as it gets, the new R9 chassis offers space for up to four 3.5" Hard Disk and two NVMe SSDs and supports large size dual-slot graphics cards. Built-in Dual Intel Gigabit LAN, 500 Watt 80 PLUS SILVER PSU, three M.2 and ten USB ports, the SZ270R9 comes packed with power and expandability in a small package, perfect for LAN parties.
Performance of Your Choice
With a wide range support of Intel® Core™ processors, the SZ270R9 lets you to take your game where you want it to go. The SZ270R9 features smooth 4K UHD video playback and offers power efficiency, high bandwidth 1.2V DDR4 2133/2400 memory support up to 64GB max capacity.
XPC Overclock Tool
Master your system with our XPC Overclock tool, used to monitor the system and CPU's temperature, usage, clock speed and voltage in real time to ensure the best system stability. The XPC Overclock took is available in eight languages and supports Windows 10 64-bit only.
Your Style. Your Way
Personalize your gaming rig with XPC RGB light control function. With six built-in default colors, three different light effects, and an RGB pallet bar, you can easily adjust colors for different modes to give your SZ270R9 a personal touch.
Instant Overclocking in One Touch
There is an easy way for instant performance boost. The SZ270R9 has a Turbo button on its top of the front panel, users do not need to set complex overclocking parameters through the BIOS, simply press the turbo button then automatically loads the most optimized overclocking configuration fast and easy.
Proper Cooling While Gaming
Configured with four copper tube-pipes, Shuttle's patented I.C.E2 heat-pipe technology uses convection cooling to dissipate heat away from and around the CPU while operating at the sound of a whisper.
Perfect Spacing for Graphics in Small Box
Shuttle SZ270R9 all-new mechanism supports dual�-slot graphics card to boost performance for gaming.
Performance
Shuttle's SZ270R9 supports the latest storage standards so users can connect any ultra-fast storage devices and accelerate performance, especially while gaming.
Dual Intel LAN
Built-in dual Intel Gigabit LAN with Teaming function means twice the transmission bandwidth, for effective high speed data transmission and faster, smoother gaming.
Immersive VR Experience
The best cutting edge technologies provide users with an impressive VR experience.
- Gaming Barebone System offers more memory and efficient performance for game downloads and data storage
- Windows 7 x64 OS support offers a dependable, user-friendly interface for easy app usage and maximum productivity
- Intel Core i7 processor delivers lightning-fast speed for demanding workloads, creative tasks, and gaming
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- Small Form Factor is lightweight and portable, making it easy to transport and ideal for space-constrained environments
- Can connect up to 10 USB peripherals for versatile and productive device integration
- Gigabit Ethernet increases data transfer capacity, delivering better overall performance for demanding network tasks
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
| Brand | |
|---|---|
| Brand | Shuttle |
| CPU / Processor | |
|---|---|
| Processor Supported | Core i5 |
| 64-bit Processing | Yes |
| Processor Socket | Socket H4 LGA-1151 |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2400/PC4-19200 |
| Total Number of Memory Slots | 4 |
| Maximum Memory Supported | 64 GB |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 500 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 10 |
| Number of USB 3.0 Ports | 6 |
| Size / Dimensions | |
|---|---|
| Form Factor | Small Form Factor |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | Z270 Express |
| Controller Type | Serial ATA/600 |
| Manufacturer | Shuttle, Inc |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Number of PCI Express x4 Slots | 1 |
| Total Number of Expansion Slots | 2 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Misc Ports | |
|---|---|
| Number of SATA Interfaces | 4 |
