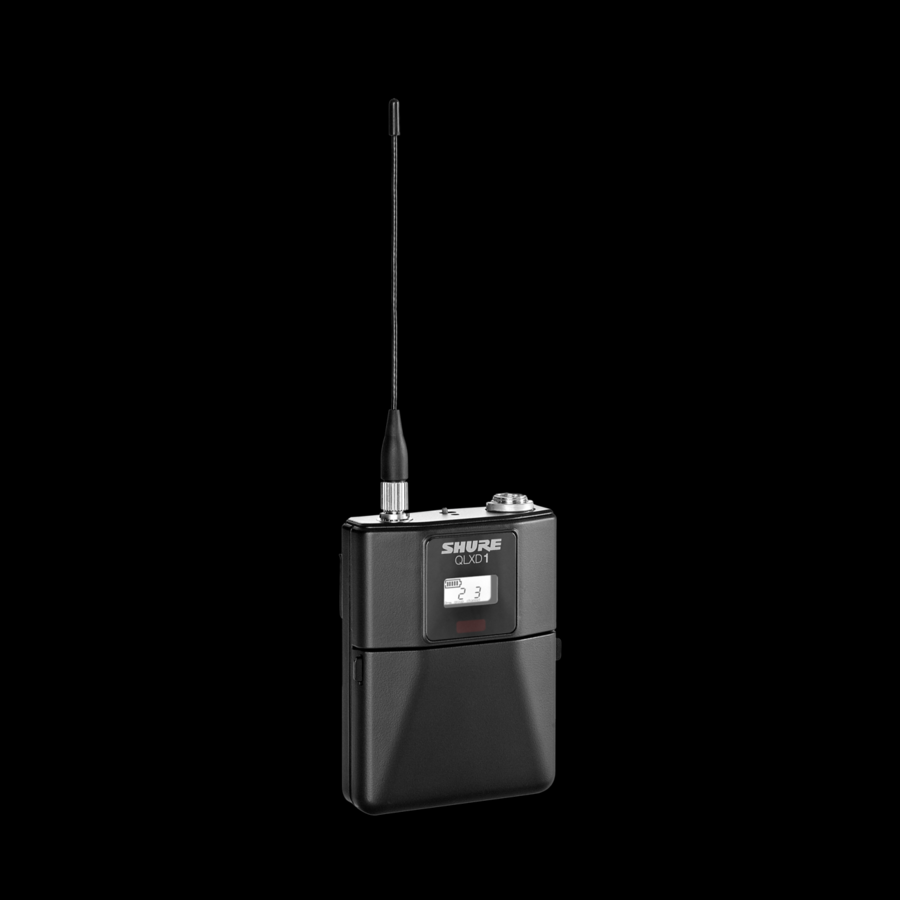

Featuring transparent 24 bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 bodypack transmitter is ideal for wireless vocals and instruments in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
- Frequency and power lockout
- Detachable � wave antenna
- 4-Pin male mini connector (TA4M)
- Rugged metal construction
- Selectable display mode showing group/channel, frequency, or battery runtime
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
- AES 256-bit encryption for secure transmission
- Over 120 dB of dynamic range: no transmitter gain adjustments needed
| Brand | |
|---|---|
| Brand | Shure |
| Power & Battery | |
|---|---|
| Battery Run Time | 9 Hour |
| Battery Chemistry | Alkaline |
| Battery Size Supported | AA |
| Number of Batteries Supported | 2 |
| Audio Ports | |
|---|---|
| XLR | Yes |
| Audio | |
|---|---|
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20 Hz |
| General Features | |
|---|---|
| Operating Range | 330.05 ft |
| Manufacturer | Shure, Inc |
| Minimum Operating Frequency | 470 MHz |
| Maximum Operating Frequency | 534 MHz |
Shure QLXD1 Bodypack Transmitter - 470 MHz to 534 MHz Operating Frequency - 20 Hz to 20 kHz Frequency Response - 330.05 ft Operating Range
