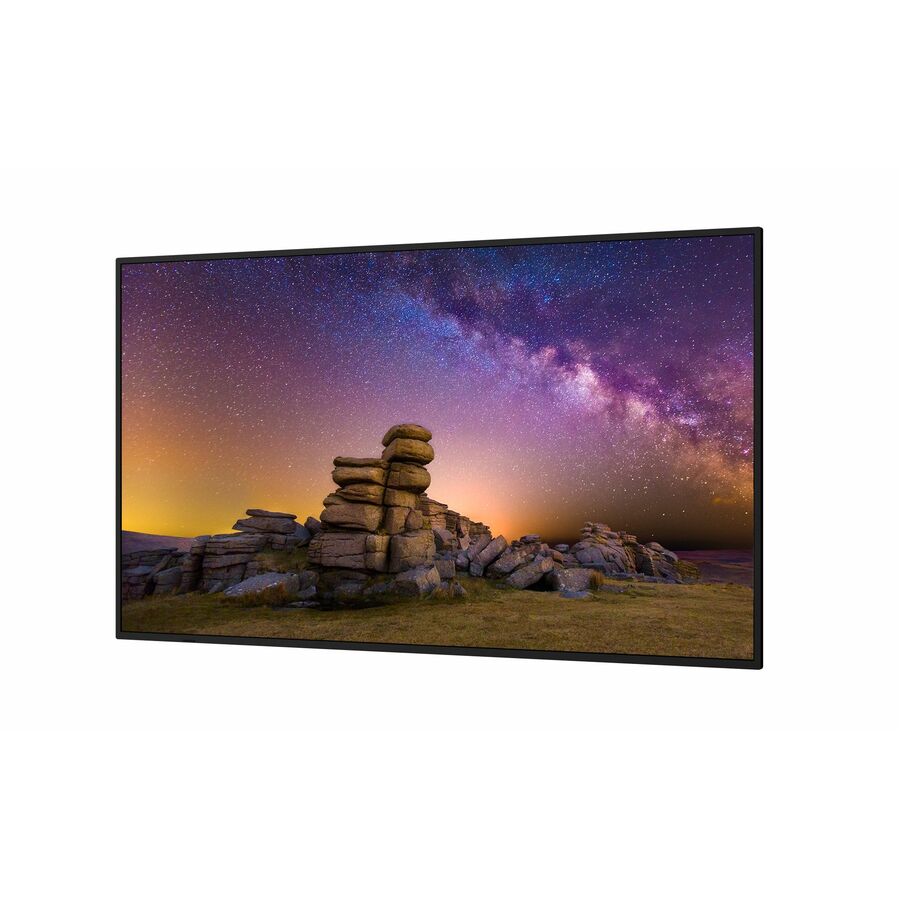

Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp PN-M Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the PN-M series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box. On top of that, these products allow customers the modularity capabilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp PN-M series boasts 550 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.
- Industrial-strength, premium-grade panelwith additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- 4K UHD native resolutionallows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionalityallow for more streamlined operations when using as a presentation type of device
- Landscape and Portrait orientationallows for flexibility of installation dependent on your needs
- Bidirectional and Full External Controlallows for easy integration into control systems via LAN or RS232C
- LAN Daisy Chainpasses RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Experience luminescent visual images with LCD display
- Features a 4k Ultra HD 3840 x 2160 resolution
- 2160p 4K UHD - Regardless of wherever or whenever the content is watched and no matter how detailed it is, this signage system is made to impress its viewers
- Edge LED backlight technology offers elegant low profile frame and transmits light from sides to generate a brighter content
| Brand | |
|---|---|
| Brand | Sharp |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 1 , 200:1 |
| Screen Size Class | 55" |
| Viewable Screen Size | 55" |
| Backlight Technology | Edge LED |
| High Dynamic Range (HDR) Type | PQ |
| High Dynamic Range (HDR) | Yes |
| Display Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 550 Nit |
| Response Time | 8 ms |
| Color Gamut | 72% NTSC |
| Pixel Pitch | 12.6 mil |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI 2.0 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPorts | 2 |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 300 x 300 |
| Mount Type | Wall Mountable |
| Mount Surface | Wall |
| Orientation | Landscape/Portrait |
| Bezel Width (Top) | 0.43" |
| Bezel Width (Bottom) | 0.54" |
| Bezel Width (Left) | 0.43" |
| Bezel Width (Right) | 0.43" |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Manufacturer | Sharp |
| Misc Ports | |
|---|---|
| Serial | Yes |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 20% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 80% |
| Energy Star | Yes |
| Brand | Sharp |
| UPC/GTIN | 074000703308 |
| MPN | PN-M552 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
