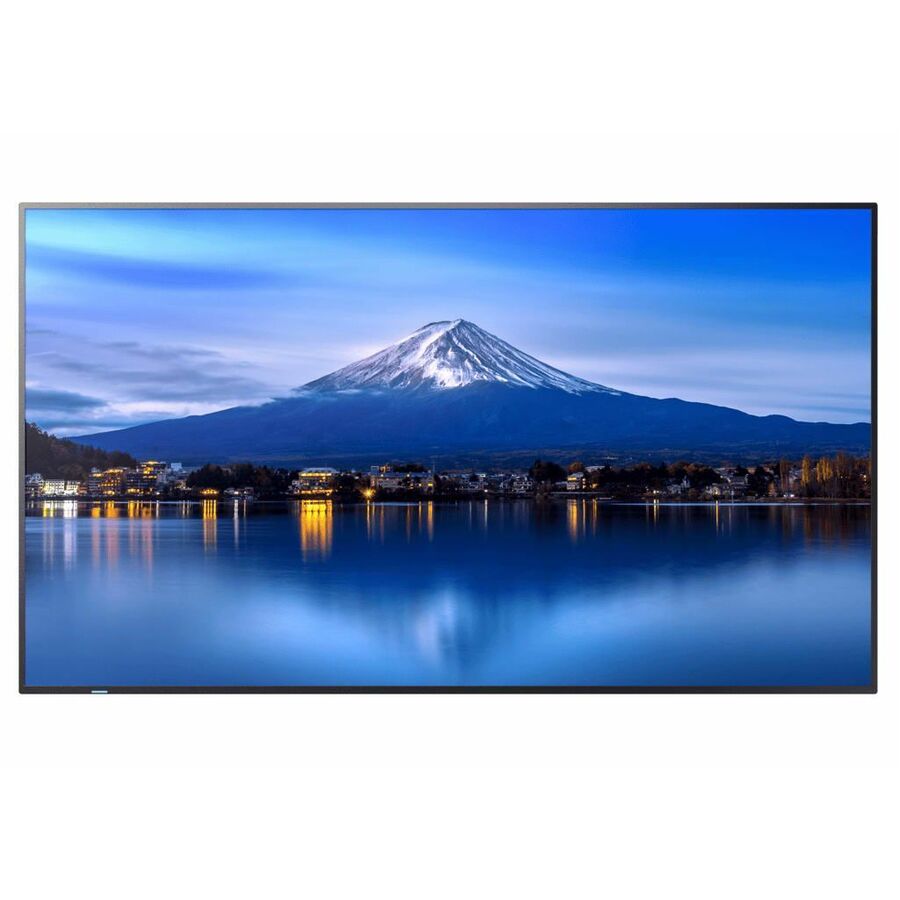

Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp PN-P Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the PN-P series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box. On top of that, these products allow customers the modularity capabilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp PN-P series boasts 700 cd/m2 brightness which is ideal for a majority of high end digital signage applications in transportation, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.
- Industrial-strength, premium-grade panel
- with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- 4K UHD native resolution
- allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality
- allow for more streamlined operations when using as a presentation type of device
- Landscape and Portrait orientation
- allows for flexibility of installation dependent on your needs
- Bidirectional and Full External Control
- allows for easy integration into control systems via LAN or RS232C
- LAN Daisy Chain
- passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
- 700 cd/m2 brightness
- with high haze panel will capture the attention of audience in almost any situation
- Enhanced Daisy Chain Capabilities
- through both HDMI and DisplayPort Out Connections passing any digital input into the di
| Brand | |
|---|---|
| Brand | Sharp |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 8 |
| Dynamic Contrast Ratio | 1 , 200:1 |
| Screen Size Class | 43" |
| Viewable Screen Size | 43" |
| Backlight Technology | Direct LED |
| High Dynamic Range (HDR) Type | HDR10 |
| High Dynamic Range (HDR) | Yes |
| Horizontal Frequency | 15kHz to 135kHz |
| Vertical Frequency | 23Hz to 76Hz |
| Display Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 700 Nit |
| Response Time | 8 ms |
| Color Gamut | 86% DCI |
| Pixel Pitch | 9.6 mil |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI 2.0 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPorts | 2 |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Digital Audio Optical Output | Yes |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 300 x 300 |
| Mount Type | Table Mount |
| Mount Surface | Wall |
| Orientation | Landscape/Portrait |
| Bezel Width (Top) | 0.39" |
| Bezel Width (Bottom) | 0.55" |
| Bezel Width (Left) | 0.39" |
| Bezel Width (Right) | 0.39" |
| Appearance | |
|---|---|
| Housing Material | Metal |
| Bezel Color | Black |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Manufacturer | Sharp |
| Misc Ports | |
|---|---|
| Serial | Yes |
| RS-232C Input | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 20% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 80% |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP2X |
| Brand | Sharp |
| UPC/GTIN | 074000703360 |
| MPN | PN-P436 |
| Unit Count | 1 Units |
