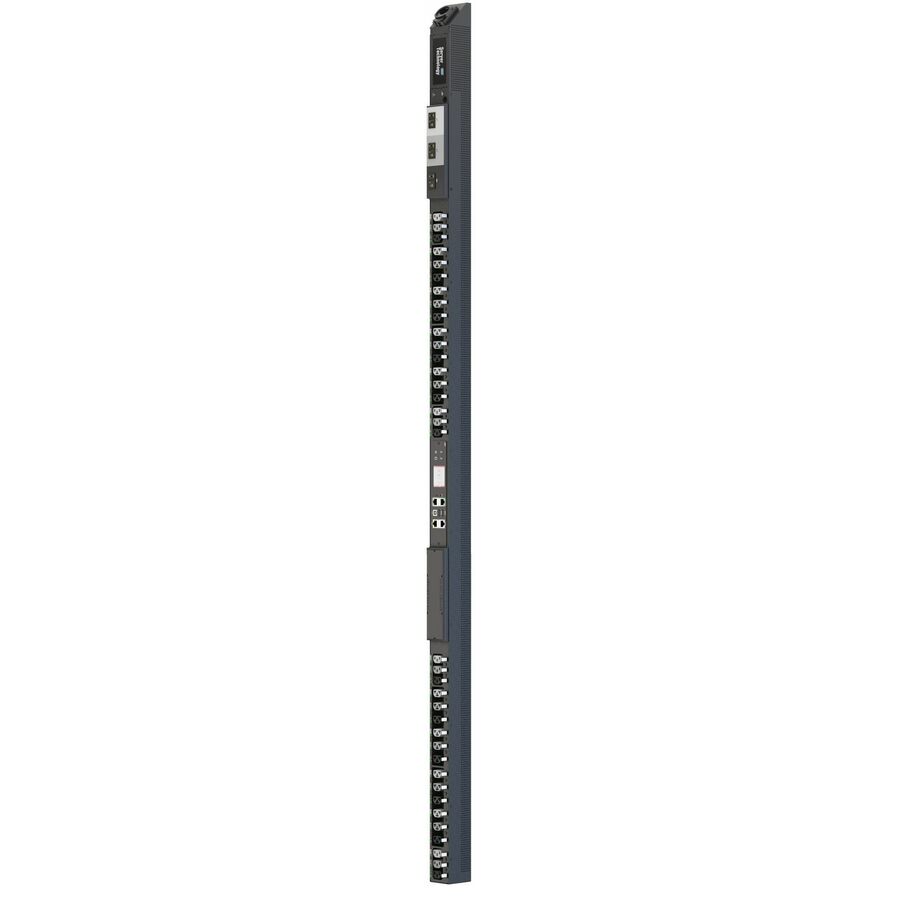

Server Technology's PRO4X Smart PDUs run on our state-of-the-art Xerus network interface platform and provide remote access to power, PDU status, input and branch current monitoring. The PDU features RamLock, a self-locking mechanism to prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. Smart PDUs are secured with strong configurable password, active directory, 256-bit AES encryption, SSH, SSL and HTTPS support. SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
- PDU provides active metering enabling energy optimization and circuit protection
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- IEC 2P+PE 6Hr 230V/32A plug/connector type for reliable, productive connectivity and optimal power output
- 230 V AC input voltage for maximum feasibility and added productivity
- 230 V AC output voltage for optimal performance with maximum feasibility
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| PDU Type | Monitored |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 24 x CX |
| Receptacle Type | CX |
| Plug/Connector Type | IEC 2P+PE 6Hr 230V/32A |
| Locking Receptacles | RamLock Locking Outlet |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Load Capacity (Watt) | 7300 W |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Button Mount |
| General Features | |
|---|---|
| Protection Type | Fuse |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
