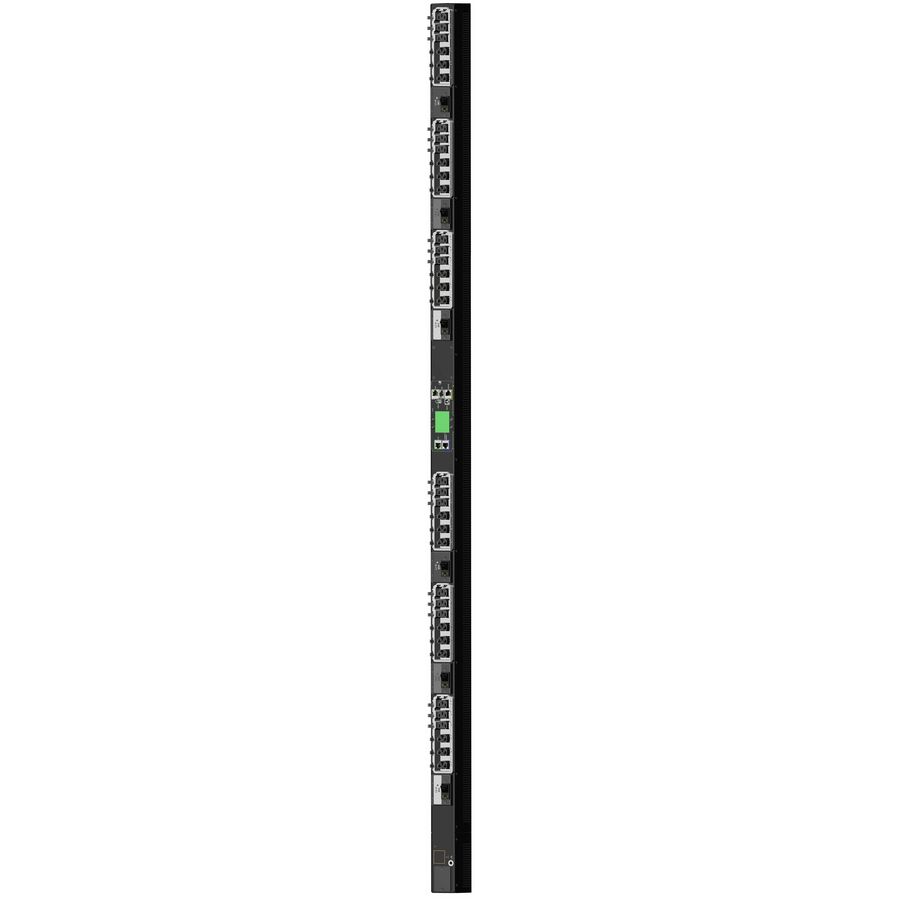

This all new Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with the Xerus Technology Platform's state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanismto prevent accidental cord disconnects on standard power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring, and outlet control and supports Legrand plug-and-play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
- PDU provides active metering enabling energy optimization and circuit protection
- With switched PDU, remotely monitor, connect or disconnect data center loads
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Three Phase phase PDU for reliable performance with maximum productivity
- IEC 60309 3P+N+E plug/connector type for efficient connectivity and feasible power output
- 400 V AC input voltage for optimal performance with maximum usability
- 230 V AC output voltage for optimal performance with maximum feasibility
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 18 x CX |
| Receptacle Type | CX |
| Plug/Connector Type | IEC 60309 3P+N+E |
| Locking Receptacles | RamLock Locking Outlet |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Load Capacity (Watt) | 11 kW |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Button Mount |
| Rack Height | 0U |
| General Features | |
|---|---|
| Protection Type | Fuse |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
