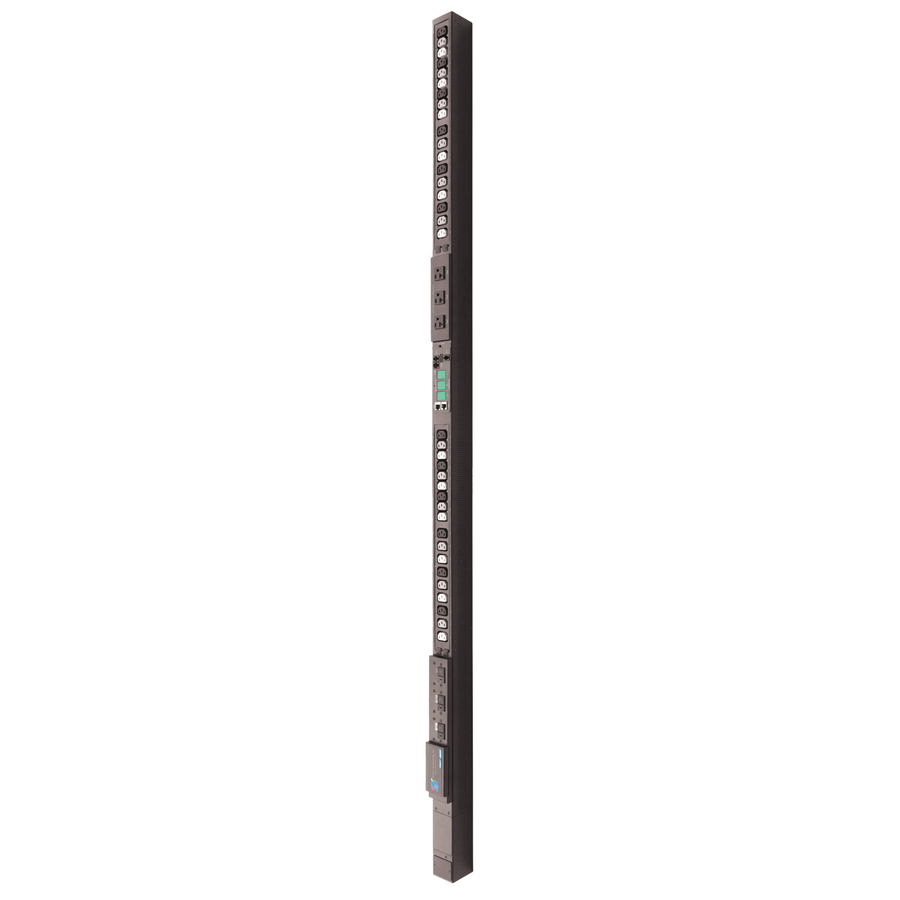

The Server Technology PRO2 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- PDU provides power control as remote controlled relay & load monitoring
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- NEMA L15-20P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for better reliance and maximum dependability
- 120 V AC output voltage for optimal performance with maximum feasibility
| Brand | |
|---|---|
| Brand | Server Technology |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 8600 W |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | NEMA L15-20P |
| Input Voltage Range | 120 V AC - 208 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| General Features | |
|---|---|
| Protection Type | Circuit Protection |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
