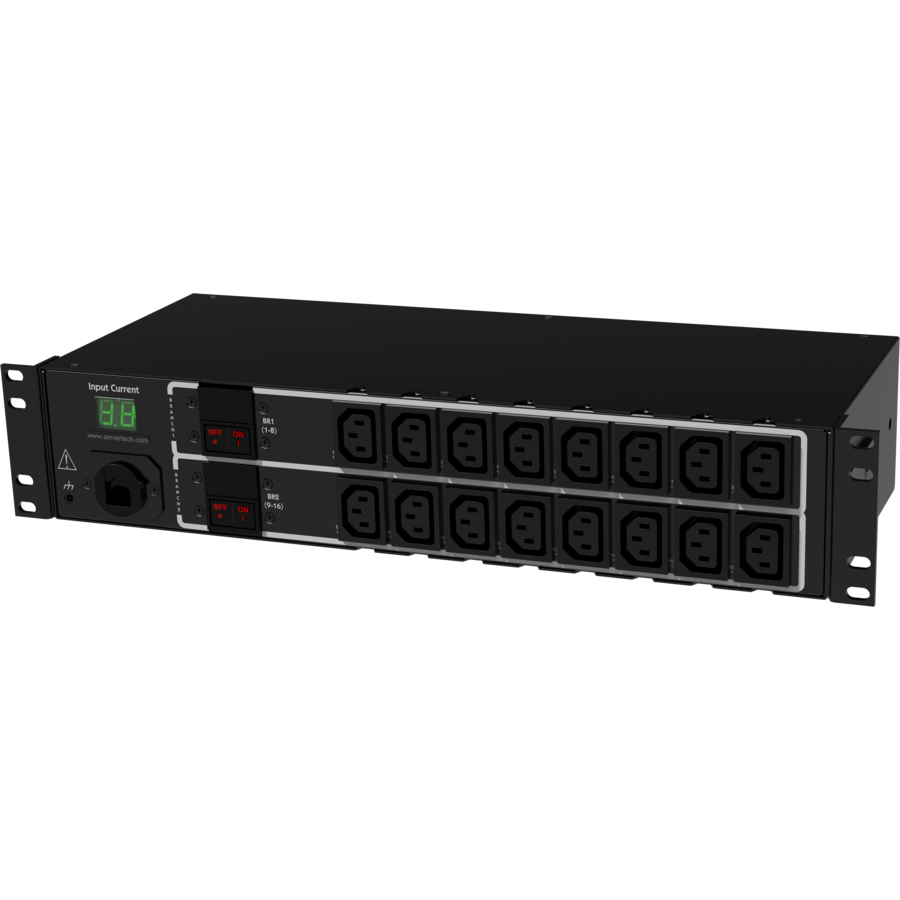

The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- Per-Inlet Power Sensing
- Color Identification
- Star Multi-Linking
- Hot-Swap Network Card
- Auto-Flip Current Display
- Outlet Control
- Branch Circuit Protection
- High Temperature Rating
- Network Monitoring
- Temperature/ Humidity Monitoring
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 5000 W |
| PDU Type | Switched |
| Phase | Single Phase |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage | 230 V AC |
| Input Current | 30 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| General Features | |
|---|---|
| Protection Type | Double Pole |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Legrand Group |
| MPN | C1W16HR-2CAA5BAC |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
