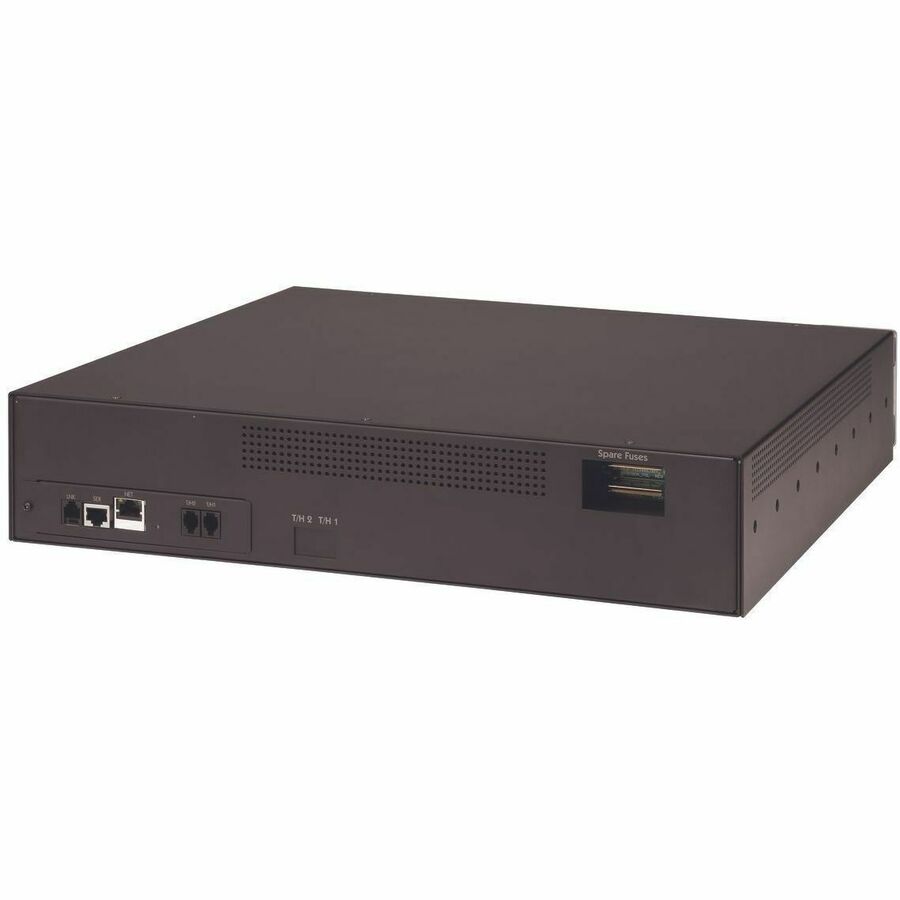

The Server Technology® -48VDC Switched PDU provides control of outlet power and per-outlet current measurement through the build-in Web and CLI interfaces as well as through SNMP. Temperature and humidity measurements can be provided via optional probes. The Switched "Primary" PDU can be connected to a Switched "Link" PDU to extend the network access to the redundant or secondary power feed.
- PDU improves efficiency, uptime and growth of data centers
- With switched PDU, remotely monitor, connect or disconnect data center loads
- Stud Terminal receptacle type to ensure maximum dependability and optimal performance
- Stud Terminal plug/connector type for efficient connectivity and feasible power output
- -48 V input voltage for better reliance and maximum dependability
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Circuit Breaker | Yes |
| Receptacle Detail | 4 x Stud Terminal |
| Receptacle Type | Stud Terminal |
| Plug/Connector Detail | 2 x Stud Terminal |
| Plug/Connector Type | Stud Terminal |
| Input Voltage | -48 V |
| Input Current | 200 A |
| Load Capacity (Watt) | 9600 W |
| General Features | |
|---|---|
| Protection Type | Fuse |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| UL Listed | Yes |
