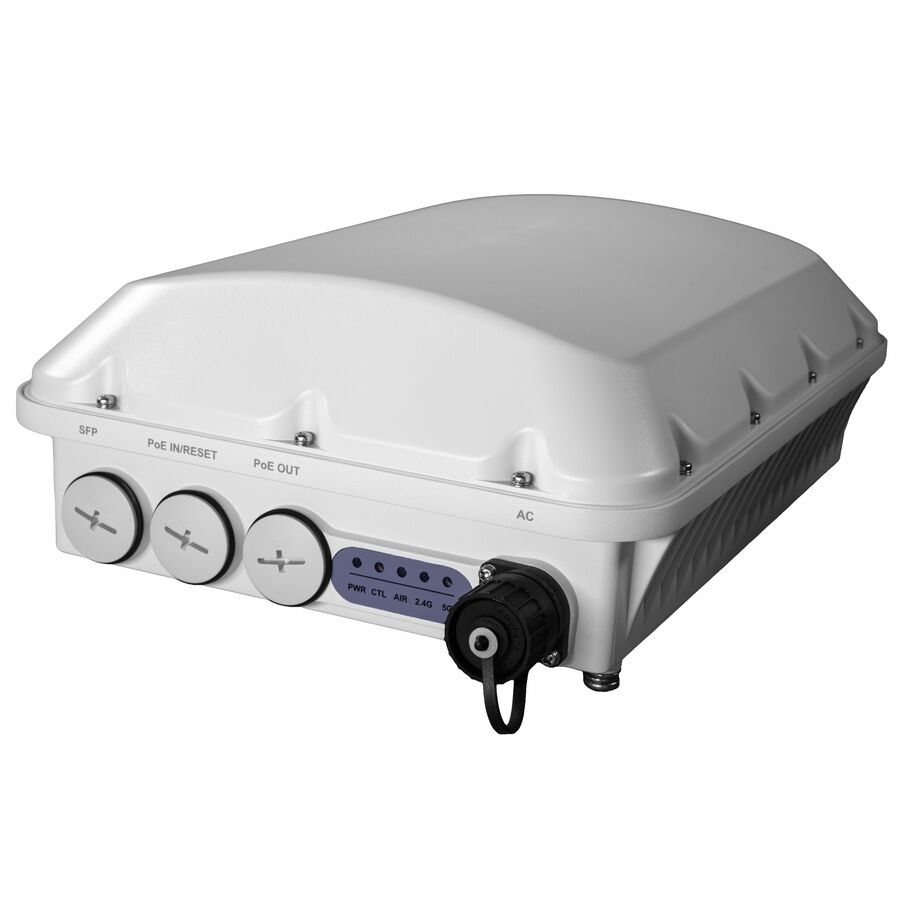

Outdoor locations such as stadiums, arenas can have the most demanding wireless requirements due to high client density. The RUCKUS® T750 access point (AP), based on the latest Wi-Fi 6 standard, brings in multi-gigabit Wi-Fi to support the ever raising expectation for highest quality of service from the users. T750 is IP-67 rated to withstand the rigors of outdoor deployments.
The RUCKUS T750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports eight spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The T750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1,024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments. Furthermore, the 2.5 GbE ethernet ensures that the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.
The T750 addresses the increasing client demands in public venues such as airports, convention centers, plazas, malls, and other dense urban environments. It is the perfect choice for data-intensive streaming multimedia applications like 4K video transmissions, while supporting latency sensitive voice and data applications with stringent quality-of-service requirements.
The T750 is also easy to manage through physical, virtual and cloud management options.
The T750 is also designed with a small form factor pluggable (SFP) fiber interface that enable seamless connectivity to a fiber backhaul. The T750 boasts a built-in GPS. Furthermore, 1GbE PoE output port can power a variety of devices like an IP-based camera or even another AP.
In addition, organizations are increasingly leveraging IoT-based sensors to serve their customers better. These sensors run on non-Wi-Fi wireless technologies such as Wi-Fi , BLE or Zigbee. Organizations need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges.
The T750 has built-in IoT radios with onboard BLE and Zigbee capabilities. In addition, the T750 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with pluggable IoT module.
The T750 when paired with the RUCKUS Ultra-High-Density Technology Suite found only in the RUCKUS Wi-Fi portfolio, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes:
- Airtime Decongestion: Increases average network throughput in heavily congested environments
- Transient Client management: Reduces interference traffic from unconnected Wi-Fi devices
- BeamFlex®+ Antennas: Extended coverage and optimized throughput with patented multi-directional antennas and radio patterns
Whether you are deploying ten or ten thousand APs, the T750 is also easy to manage through RUCKUS' physical and virtual management options.
- Great Outdoor Wi-Fi: Experience high performance outdoor Wi-Fi 6 with IP-67 weather proofing and dual backhaul options with SFP and multi-gigabit 2.5 GbE ethernet port.
- Connect More Devices Simultaneously: Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (dual-concurrent, 4x4:4 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology while enhancing non-Wi-Fi 6 client performance. Support for up to 1,024 clients.
- High Density Performance: Provide exceptional end-user experience within high density public venues such as airports, amusement parks, stadiums, outdoor arenas, and other dense outdoor urban environments with the RUCKUS Ultra-High-Density Technology Suite.
- Converged Access Point: Allow customers to eliminate siloed networks and unify Wi-Fi and IoT wireless technologies into one single network by using built-in BLE and Zigbee, and also expand to any future wireless technologies through the pluggable IoT module.
- Power Other Devices: Daisy chain and power other devices like an IP camera, or another AP directly from the 1 GbE PoE output port.
- Multiple Management Options: Manage the T750 from the cloud, with on-premises physical/virtual appliances, or without a controller.
- Enhanced Security: Reinforce security with WPA3, the latest Wi-Fi security standard and receive enhanced protection from man-in-the-middle attacks.
| Brand | |
|---|---|
| Brand | CommScope |
| Power & Battery | |
|---|---|
| Power Consumption | 10.75 W |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 6 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Wireless Transmission Speed | 2.50 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Communication Protocols | LACP |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 Type A |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface Mount |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | AES |
| General Features | |
|---|---|
| Indoor/Outdoor | Outdoor |
| Manufacturer | CommScope, Inc |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IP67 |
