Outdoor venues like stadiums and arenas present some of the most demanding wireless challenges due to high client density. The RUCKUS® T670sn access point (AP), powered by the latest Wi-Fi 7 standard combined with RUCKUS unique patented technologies, delivers multi-gigabit Wi-Fi to meet the ever-growing demand for top-tier performance. Designed for durability, the T670sn is IP-67 rated to withstand the harsh conditions of outdoor deployments.
The availability of Wi-Fi 7 marks the beginning of a new era of possibilities. With groundbreaking advancements in speed, capacity, latency, and reliability, it is set to revolutionize the way we connect and engage with the digital world.
Moreover, industries such as hospitality and education can benefit immensely from Wi-Fi7 low latency and high reliability. Other verticals like, MDUs, large public venues and service providers gain greatly from Wi-Fi 7 unprecedented advancements in speed and capacity.

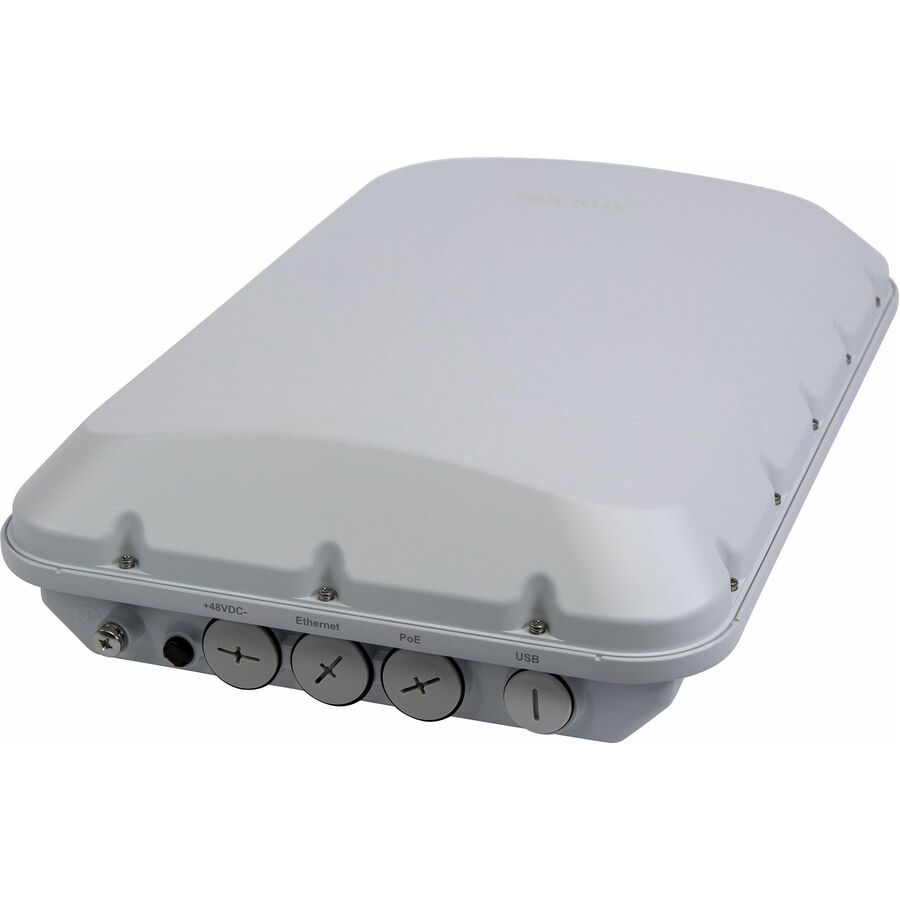

The RUCKUS T670sn is a high-end Wi-Fi 7, tri-band concurrent outdoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz/5GHz/6GHz or, in dual-band mode, 2x2:2 in 2.4GHz and 4x4:4 in 5GHz) With Multi-Link-Operation (MLO), Preamble Puncturing, 4K QAM Modulation and 320MHz channels. It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps.
T670sn Programmable Sector Antenna
The T670sn unique programmable sector antenna delivers both narrow and wide sector coverage on demand. This offers many great benefits:
Deployment Flexibility
With software-defined sector coverage, network operators can easily adapt the AP to different environments-narrowing the beam for high-density areas or expanding it for broader coverage.
Optimized Performance & Signal Control
By precisely controlling the antenna's coverage, interference is minimized, and signal strength is maximized, ensuring better connectivity and higher data rates in targeted areas.
Dynamic Adaptation for Changing Needs
As network requirements evolve-whether due to seasonal crowd variations, temporary events, or new infrastructure-the antenna pattern can be reconfigured remotely, eliminating the need for costly physical adjustments.
Enhanced Spectral Efficiency
By directing RF energy only where it's needed, this technology improves spectrum utilization, reducing co-channel interference and improving overall network capacity.
- Connect more devices simultaneously Improve device performance, by enabling more simultaneous device connections with 6 spatial streams (2x2:2 in 2.4GHz, 5GHz, and 6GHz) technology. 9.34 Gbps combined data rate.
- High client density and performance Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms.
- Unique Programmable Sector Antenna To maximize deployment flexibility, throughput, and range, the T670sn features the industry's first programmable sector antenna, delivering both narrow and wide sector coverage on demand. This innovation optimizes signal strength, enhances throughput, and increases network capacity and works seamlessly with any client device.
- Great Outdoor Wi-Fi Experience high performance outdoor Wi-Fi 7 with IP-67 weather proofing and multi-gigabit 5 GbE Ethernet port.
- 5 GbE minimizes wired backhaul bottleneck Optimized multi-gigabit Wi-Fi performance delivered using the built-in 1/2.5/5GbE port to connect to multi-gigabit switche
| Brand | |
|---|---|
| Brand | CommScope |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 7 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| MIMO Type | Single User/Multi User MIMO |
| Wireless Transmission Speed | 9.34 Gbit/s |
| Frequency Band | 6 GHz |
| Network Band | Tri Band |
| Number of Bandwidth Streams | 6 |
| Communication Protocols | IPv6 |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 Type C |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Surface Mount |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | DPSK3 |
| General Features | |
|---|---|
| AI-powered | Yes |
| Indoor/Outdoor | Outdoor |
| Manufacturer | CommScope, Inc |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IP67 |
| Brand | CommScope, Inc |
| MPN | 901-T670-US51 |
| Unit Count | 1 Units |
| Warranty | 1 Year |
