Bandwidth-hungry ultra-high definition video, virtual reality, Internet of Things (IoT), an explosion of new devices and content! With these kinds of demands, organizations in every industry need more from their Wi-Fi, but with hundreds of devices and nonstop wireless noise and interference, busy indoor spaces can make challenging wireless environments.
The dawn of the Wi-Fi 7 era ushers in a new wave of possibilities. With its groundbreaking advancements in speed, capacity, latency, and reliability, Wi-Fi 7 will transform the way we connect and interact with the digital world.
From seamless streaming of ultra-high-definition content to immersive virtual and augmented reality experiences, Wi-Fi 7 enables applications that were previously unimaginable. Real-time social gaming can reach new heights, allowing for lag-free, competitive multiplayer experiences with unparalleled responsiveness.
The Internet of Things (IoT) also receive a significant boost, as Wi-Fi 7 supports a massive number of connected devices simultaneously, facilitating smart homes, smart cities, and intelligent automation on a grand scale.
Moreover, industries such as hospitality and education can benefit immensely from Wi-Fi 7 low latency and high reliability. Other verticals like, MDUs, large public venues and service providers gain greatly from Wi-Fi 7 unprecedented advancements in speed and capacity.

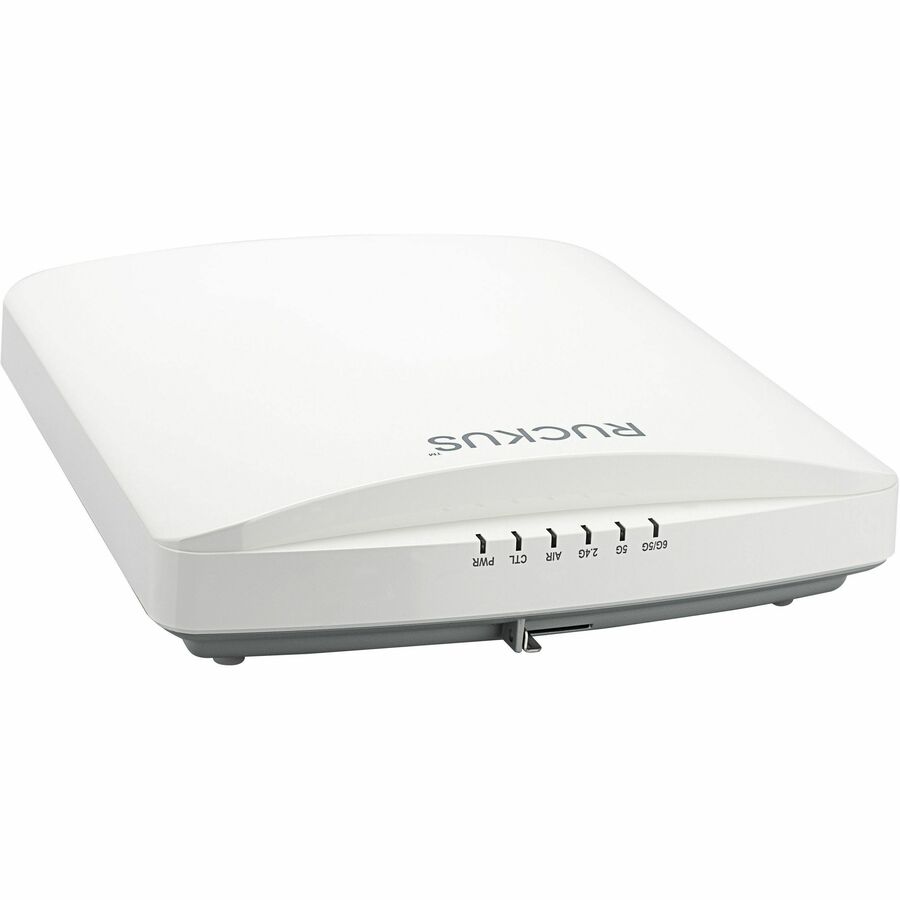

The RUCKUS R670 is a mid-range Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) With Multi-Link-Operation (MLO), Preamble Puncturing, 4K QAM Modulation and 320MHz channels. It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps. Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul bottleneck for full use of available Wi-Fi capacity
Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee capabilities. The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.
The R670 expands the reach of Wi-Fi 7 and addresses the needs of every day deployments, in guest rooms, classrooms, hotel rooms and lobby. It supports data intensive streaming applications like 4K/8K video transmissions, while supporting latency sensitive voice and data applications with stringent quality-of-service requirements.
The R670, with built-in RUCKUS exclusive technology, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes:
- Airtime Decongestion: Increases average network throughput in heavily congested environments
- Transient Client management: Reduces interference traffic from unconnected Wi-Fi devices
- BeamFlex®+ Adaptive Antennas: Extended coverage range and optimized throughput with patented dynamic multi-directional antennas and radio patterns and work with any client.
Whether you are deploying ten or ten thousand APs, the R670 is also easy to manage through RUCKUS multiple management options including cloud based and on premises controllers.
- Connect more devices simultaneouslyImprove device performance, by enabling more simultaneous device connections with built-in 6 spatial streams (2x2:2 in 2.4GHz, 2x2:2 in 5GHz, 2x2:2 in 6GHz) technology. 9.34 Gbps Combined data rate.
- Wi-Fi 7 for mainstream deploymentProvides exceptional end-user experience expanding the range of use cases for Wi-Fi 7 including guest rooms, classrooms, meeting rooms
- BeamFlex+ Adaptive Antenna TechnologyFor greater speed, fewer errors, and instant bandwidth delivery, RUCKUS BeamFlex+ patented technology offers first-of-its-kind smart antenna technology that maximizes signal coverage, throughput, and network capacity and work with any client. It further increases MIMO diversity gain and maximizes spatial multiplexing potential.
- Converged Access PointAllows customers to eliminate siloed networks and unify Wi-Fi and non Wi-Fi wireless technologies into one single network by using built-in BLE or Zigbee with support for Matter and Thread. Expandable to future wireless technologies through USB port.
- 5 GbE eliminates bottleneckOptimized multi-gigabit Wi-Fi performance delivered using the built-in 1/2.5/5GbE port to connect to multi-gigabit switches.
- Multiple management optionsManage the R670 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.
- Enhanced SecurityThe latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks. Adds the power of RUCKUS DPSK3 to WPA3/SAE combining enhanced security with the flexibility and ease of use of dynamic passphrase to secure network access
- More Than Wi-FiSupport solutions beyond Wi-Fi with RUCKUS IoT Suite, RUCKUS AI, RUCKUS One, RUCKUS Cloudpath Enrollment System and onboarding software.
| Brand | |
|---|---|
| Brand | CommScope |
| Networking & Connectivity | |
|---|---|
| Mesh Supported | Yes |
| ZigBee | Yes |
| Wi-Fi Generation | Wi-Fi 7 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| MIMO Type | Single User/Multi User MIMO |
| Wireless Transmission Speed | 9.34 Gbit/s |
| Frequency Band | 6 GHz |
| Network Band | Tri Band |
| Number of Bandwidth Streams | 6 |
| Communication Protocols | LLDP |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 Type A |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | T-bar Mount |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | DPSK3 |
| General Features | |
|---|---|
| AI-powered | Yes |
| Indoor/Outdoor | Indoor |
| Manufacturer | CommScope, Inc |
