Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications.

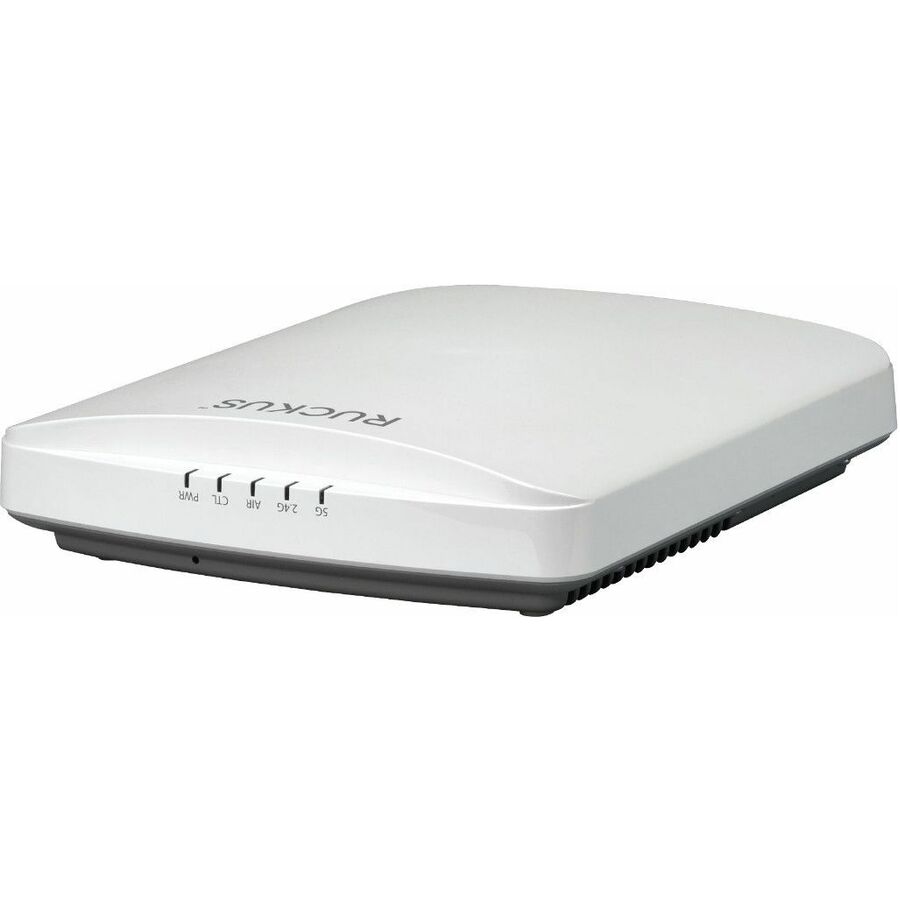

The RUCKUS® R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies resulting in creation of network silos. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges.
The R650 has built-in IoT radios with onboard BLE and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.
The R650 is packed with Ruckus patented technologies in addition to Wi-Fi 6 features such as OFDMA, MU-MIMO and TWT. The R650 is ideal for medium-density deployments such as office buildings, K-12 classrooms, libraries and retail venues.
The R650 Wi-Fi 6 AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.
- BeamFlex+ Antennas: Extended coverage and optimized throughput with patented multi-directional antennas and radio patterns
- ChannelFly: Improved throughput with dynamically changing the channels to use least congested channel
- Ruckus Ultra-High-Density Technology Suite: Dramatically improved network performance with technologies such as Airtime Decongestion, Transient Client Management etc.
Whether you are deploying ten or ten thousand APs, the R650 is also easy to manage through Ruckus' physical and virtual management options.
- Stunning Wi-Fi performance: Mitigate interference and extend coverage with patented BeamFlex®+ adaptive antenna technology utilizing several directional antenna patterns.
- Serve more devices: Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance.
- Converged access point: Allow customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies.
- Automate optimal throughput: ChannelFly® dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
- Multiple management options: Manage the R650 from the cloud, with on-premises physical/virtual appliances, or without a controller.
- Better mesh networking: Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks.
- More than Wi-Fi: Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath® security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
| Brand | |
|---|---|
| Brand | CommScope |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 6 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Wireless Transmission Speed | 2.90 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Communication Protocols | LLDP |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 Type A |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Manufacturer | CommScope, Inc |
