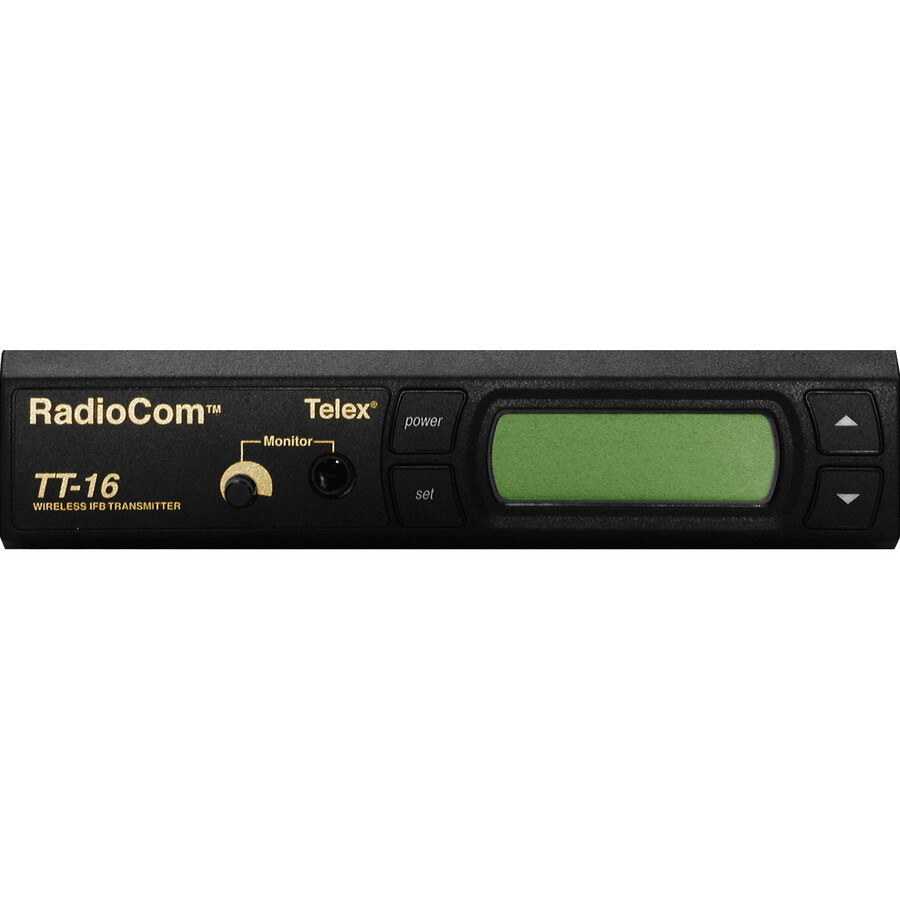

The RadioCom TT-16 base station transmitter and the TR-16 beltpack talent receiver is a 16-channel synthesized wireless IFB system. The system is designed to provide a convenient wireless link to on-air talent in the studio or in the field at remote locations. Operating in the low band VHF 64-68MHz range (TV Ch 3 and 4), the units operate reliably at distances of over 350 feet. In unoccupied television channels, up to five TT-16 transmitters will operate simultaneously within the same location.
Features
- Wireless link from intercom system for cueing, talent IFB and more.
- 16 channel synthesized transmitter. Up to five (5) frequencies compatible for simultaneous use.
- Backlit LCD with control buttons.
- Accepts standard RTS-TW, Audiocom or Clear-Com intercom level inputs.
- Balanced XLR input connector with level control and viewable meter.
- Unbalanced �-inch line level input connector with level control and viewable meter.
- Hi/Low Selectable RF output power.
- Enhanced Dynamic Range (E.D.R.) For improved dynamic audio.
- Front panel �-inch monitor jack with level control.
- 16 Channel tunability.
- Backlit LCD with control buttons.
- High frequency boost compensates for high frequency loss when used with long acoustic tubes.
- Accepts standard 3.5mm mini stereo/mono ear pieces.
- Runs on two (2) standard "AA" batteries. Alkaline batteries provide up to 20 hours of continuous use.
