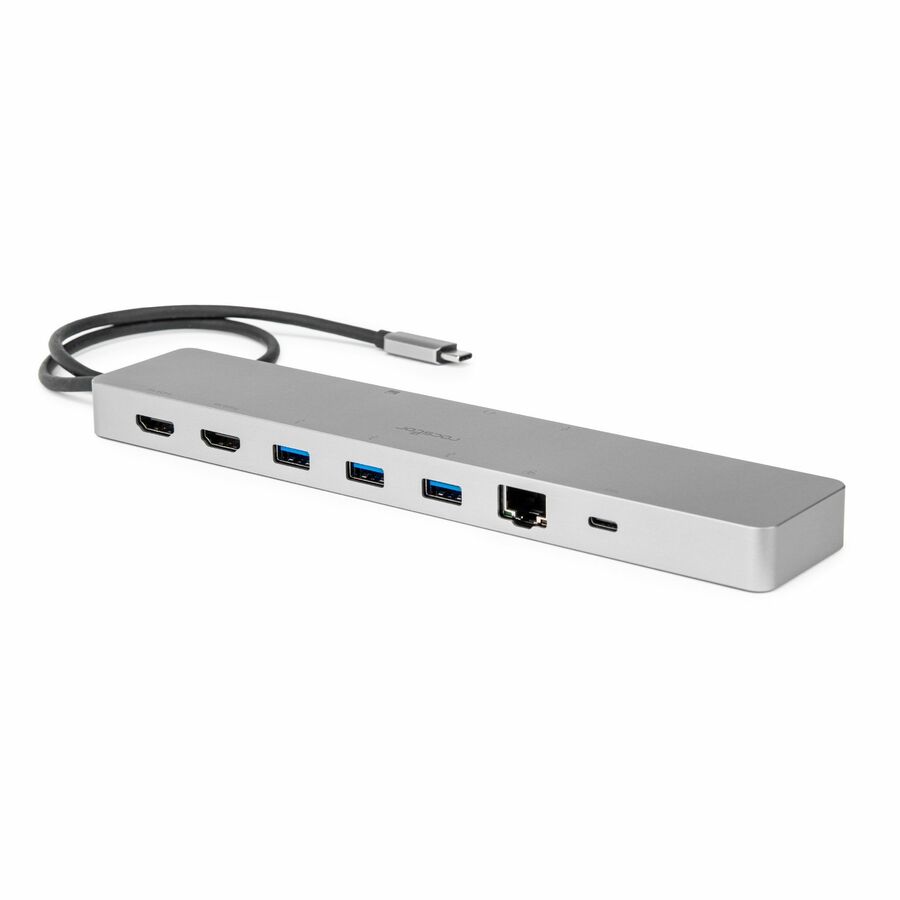

The Rocstor Type-C 11-in-1 Portable Dock is a versatile and comprehensive solution designed to extend the port options of Type-C or Thunderbolt hosts, including PCs, laptops, and mobile phones. This docking station is especially beneficial for devices with a single Type-C port, offering seamless connectivity and enhanced functionality. Equipped with a DisplayPort 1.4 Alt mode supported IC, it enables HDMI video output up to 8k/30Hz while simultaneously transferring USB 3.1 data at speeds of up to 5Gbps. Users can connect up to four USB devices concurrently through three USB-A ports and a Type-C data port, ensuring efficient data management and accessibility.
In addition to video and data transfer capabilities, this docking station features SD and TF card slots for easy data access and transfer. The 3.5mm audio port allows users to enjoy high-quality music, while the Type-C PD Charging port supports PD3.0 with a maximum power supply of 100W, ensuring devices remain powered during use. The Gigabit Ethernet port ensures fast and reliable internet connectivity, making this dock an essential tool for enhancing productivity and connectivity.
Designed for compatibility with all DP Alt mode supported Type-C hosts, this docking station delivers exceptional versatility and efficiency. Its robust design and advanced features make it the perfect accessory for professionals seeking to maximize their device's capabilities. Backed by Rocstor 3-year limited warranty and lifetime free technical support.
- Display Support: DP1.4 Alt mode
- HDMI Ports: Max 8K/30Hz and 4K/60Hz, dual 4K/30Hz under MST, dual 4K/60Hz under SST
- USB Ports: Three USB-A ports and one Type-C data port with max 5Gbps data transmission and 900mA downstream charging per port
- SD and TF Card Slots: UHS-I up to 104MBps (TF), UHS-II up to 312MBps (SD), simultaneous operation
- Gigabit Ethernet Port: Supports 10M/100M/1000M with Wake-On-LAN and full duplex flow control
- 3.5mm Audio Port: DAC supporting 44.1/48/96KHz sample rate, 16/24-bit, and ADC input supporting 44.1/48KHz sample rate, 16-bit
- Type-C PD Charging Port: Supports max 100W PD charging and PD3.0 Fast Role Swap
- Smart Power Distribution: Provides the host with power ranging from 82W to 96W for efficient power management
- Warranty: Rocstor 3-Year Limited Warranty
| Brand | |
|---|---|
| Brand | Rocstor |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 2 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 4K @30Hz |
| Supported Resolutions | 3840 x 2160 |
| Power & Battery | |
|---|---|
| Charging Capability | Yes |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB Power Delivery | 100W |
| Total Number of USB Ports | 5 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 3 |
| Number of USB 3.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Audio Line Out | Yes |
| Headphone/Microphone Combo Port | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | TransFlash |
| Size / Dimensions | |
|---|---|
| Form Factor | Portable |
| General Features | |
|---|---|
| Management Features | Wake-on-LAN |
| Maximum Data Transfer Rate | 640 MB/s |
| Manufacturer | Rocstor |
| Brand Compatibility | Dell |
| Misc Ports | |
|---|---|
| Host Interface | USB Type C |
