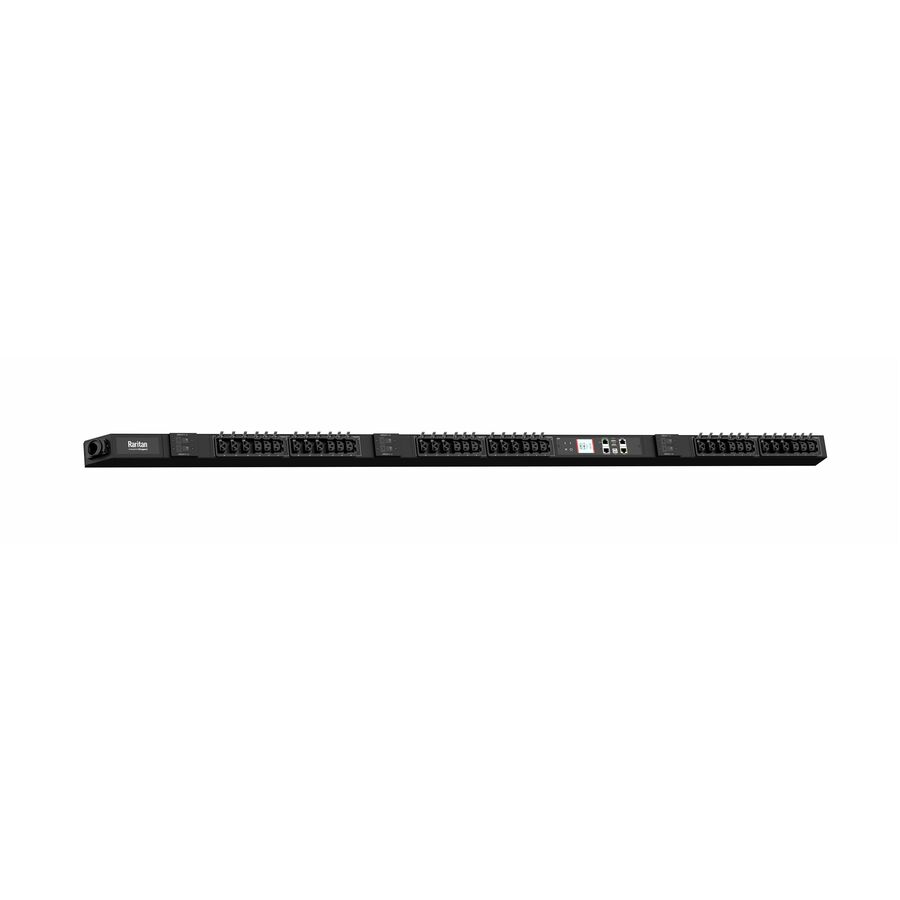

- A device fitted with multiple outputs for the distribution of electric power
- Easily control your equipment remotely without any hassle with Switched with Metered-by-Outlet
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- Three Phase phase PDU provides dependable power output with maximum efficiency
- NEMA L22-30P (4P5W) plug/connector type for efficient connectivity and feasible power output
- 415 V AC input voltage for better reliance and maximum dependability
- 208 V AC output voltage for optimal performance with maximum feasibility
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| PDU Type | Switched with Metered-by-Outlet |
| Remote Outlet Switching | Yes |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 18 x CX |
| Receptacle Type | CX |
| Plug/Connector Type | NEMA L22-30P (4P5W) |
| Locking Receptacles | SecureLock |
| Input Voltage Range | 360 V AC - 415 V AC |
| Input Voltage | 415 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 208 V AC - 240 V AC |
| Input Current | 30 A |
| Load Capacity (VA) | 17.30 kW |
| Power Rating (VA) | 3800 VA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| General Features | |
|---|---|
| Protection Type | Single Pole |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cord Length | 9.84 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Operating Humidity | 95% |
| Minimum Operating Humidity | 5% |
