- PDU is reliable for power protection and management solutions

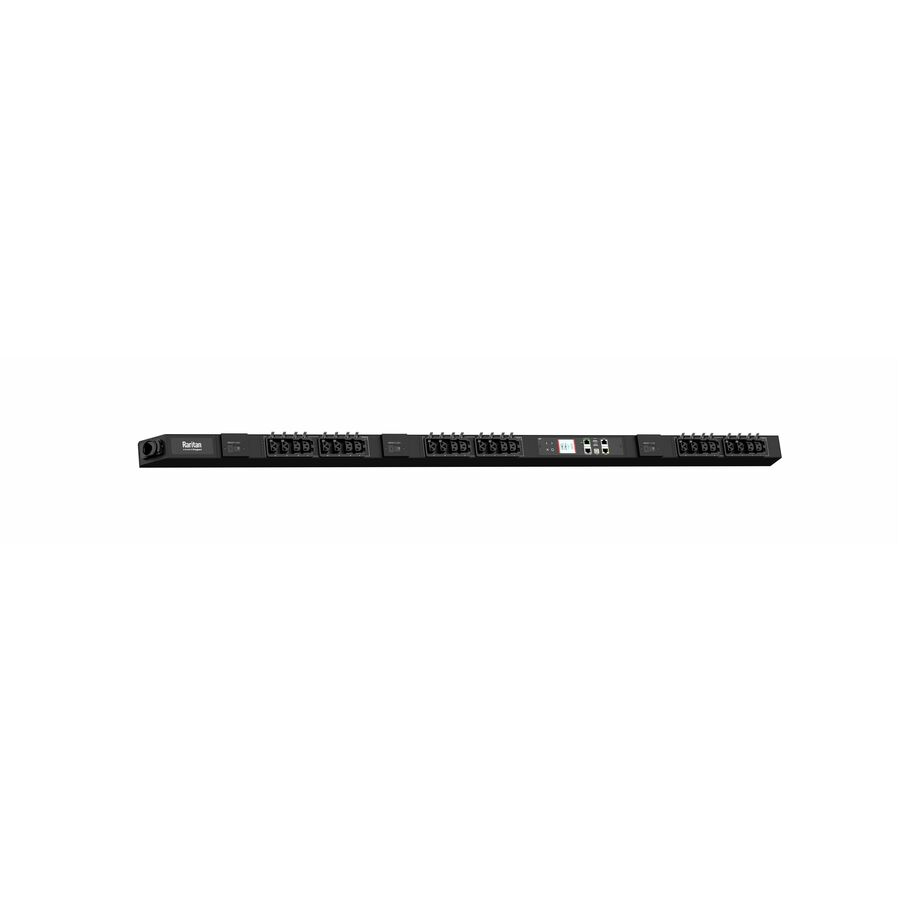

- Metered PDU offers reliable, rack-mount and multi-outlet power source
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- Three Phase phase PDU provides dependable power output with maximum efficiency
- NEMA L21-30P (4P5W) plug/connector type for efficient connectivity and feasible power output
- 208 V AC input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Remote Outlet Switching | No |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 12 x CX |
| Receptacle Type | CX |
| Plug/Connector Type | NEMA L21-30P (4P5W) |
| Locking Receptacles | SecureLock |
| Input Voltage Range | 190 V AC - 208 V AC |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 190 V AC - 208 V AC |
| Input Current | 30 A |
| Load Capacity (VA) | 8600 W |
| Power Rating (VA) | 8600 VA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Button Mount |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cord Length | 9.84 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Operating Humidity | 95% |
| Minimum Operating Humidity | 5% |
