Rack Power Distribution Units (PDUs)

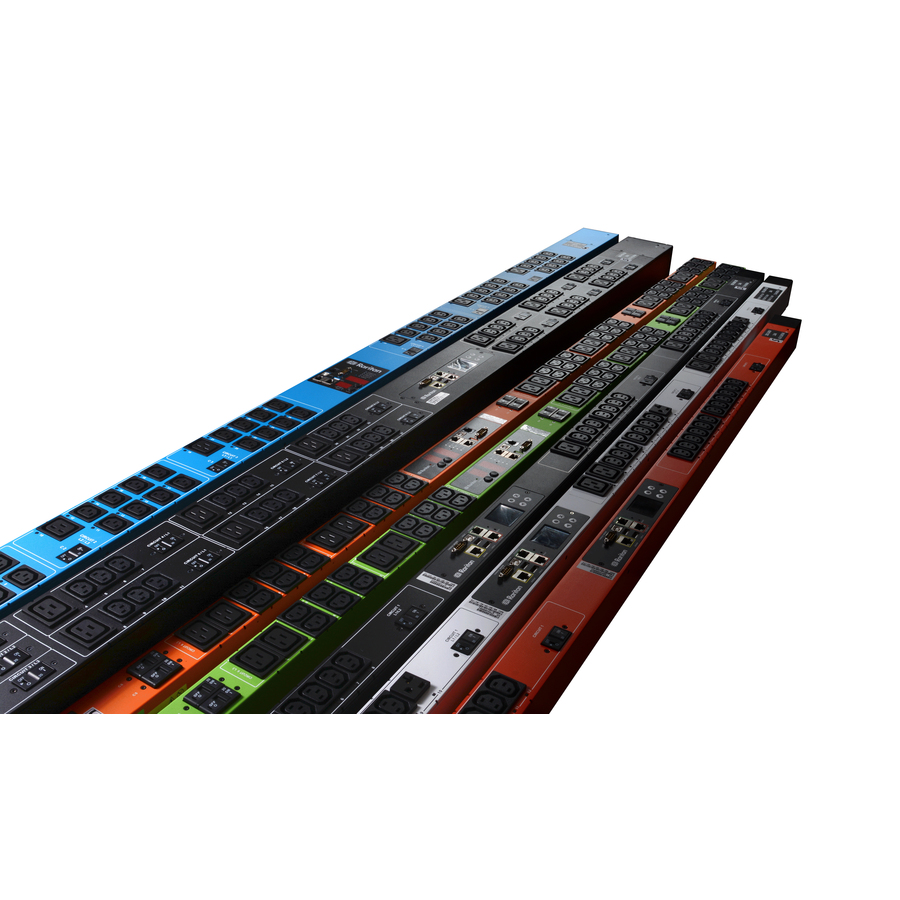

The Raritan PX family of high-quality, intelligent rack power distribution units (iPDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/- 1% billing-grade accuracy, even at individual outlets.
The PX series offers hundreds of models to meet all your data center applications, including models with remote outlet switching, individual outlet metering, high-power for blade servers and high-density applications, and 400V power distribution.
- PDU provides power control as remote controlled relay & load monitoring
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- NEMA L21-30P plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Receptacle Detail | 3 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L21-30P |
| Plug/Connector Type | NEMA L21-30P |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 8600 VA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
