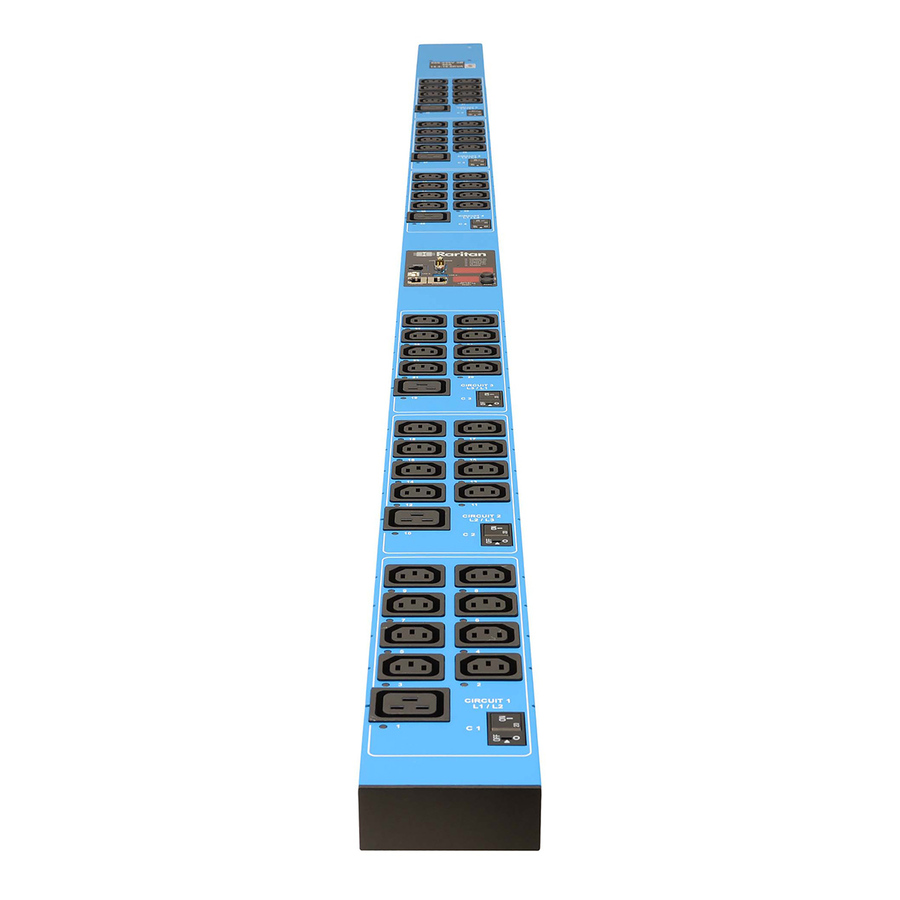

Raritan PX3 48-Outlet PDU

3,689.99 3,689.99
3,689.99

3,689.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Protection Type
  • Management
  • Network (RJ-45)
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Input Voltage
  • Output Voltage
  • Input Current
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Manufacturer Website Address
  • Power Rating (VA)
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
PDU - Rack Power Distribution Units

The PX series boasts the most reliable and sophisticated rack PDUs on the market. It offers metering at the inlet, outlet, and PDU circuit breaker level. And tracks current, voltage, power, power factor, and energy usage within 1% billing-grade accuracy. In short, it helps you to better manage existing power capacity, and save energy.

But the PX series offers more than reliable power distribution and metering. It also supports sensors that ensure your equipment is operating in a safe environment. And remote outlet switching to ensure proper provisioning and avoid tripped circuit breakers. Or reboot hung servers. All without stepping foot in the data center.

We offer hundreds of models that meet all your needs. Whether you have a small, medium, or large data center; densely packed 400V three-phase racks; high power blade servers; or a lights-out colo deployment -- there's a PX just for you. See more reasons to consider the PX below.

  • PDU distributes AC power to multiple servers and balances the load on the servers
  • IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
  • NEMA L21-30P plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for optimal performance with maximum usability
  • 208 V AC output voltage for better reliance and maximum usability
Brand
Brand Legrand Group
Power & Battery
Receptacle Detail 12 x IEC 60320 C19
Receptacle Type IEC 60320 C19
Plug/Connector Type NEMA L21-30P
Input Voltage 230 V AC
Output Voltage 208 V AC
Input Current 24 A
Power Rating (VA) 8600 VA
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 0U
General Features
Protection Type Overcurrent Protection
Manufacturer Legrand Group
