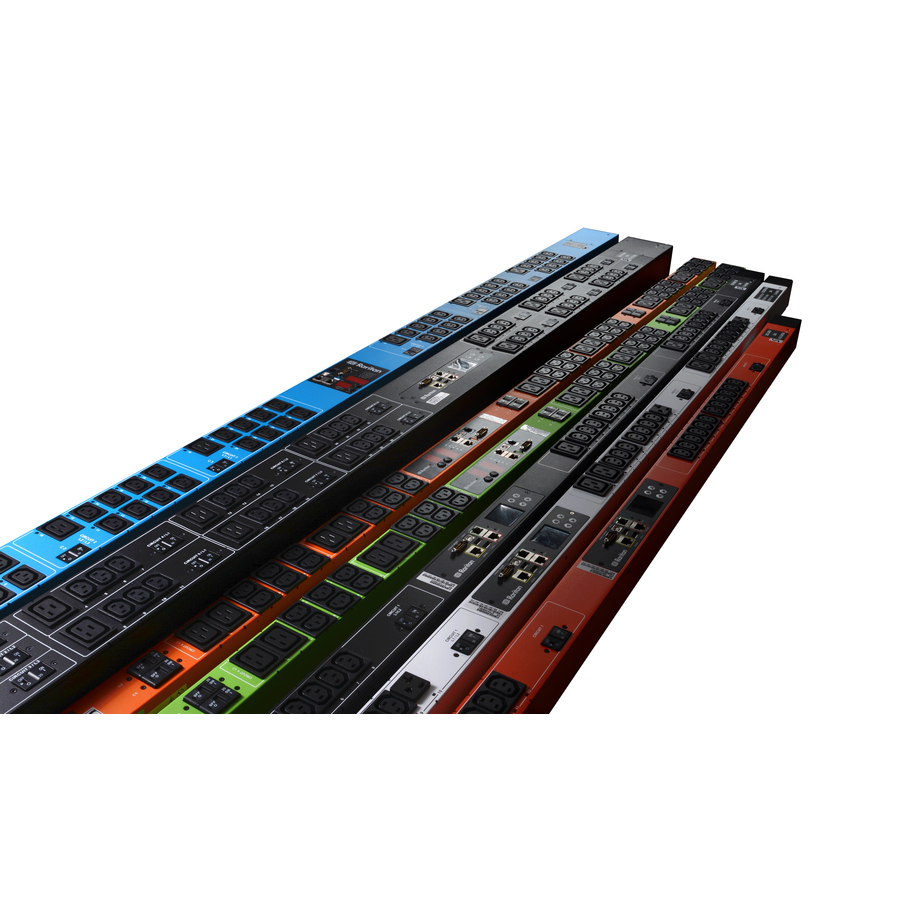

The Raritan PX family of high-quality, intelligent rack power distribution units (iPDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/- 1% billing-grade accuracy, even at individual outlets.
The PX series offers hundreds of models to meet all your data center applications, including models with remote outlet switching, individual outlet metering, high-power for blade servers and high-density applications, and 400V power distribution.
- PDU provides active metering enabling energy optimization and circuit protection
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- NEMA L21-30P plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Receptacle Detail | 12 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | NEMA L21-30P |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 24 A |
| Power Rating (VA) | 8600 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
