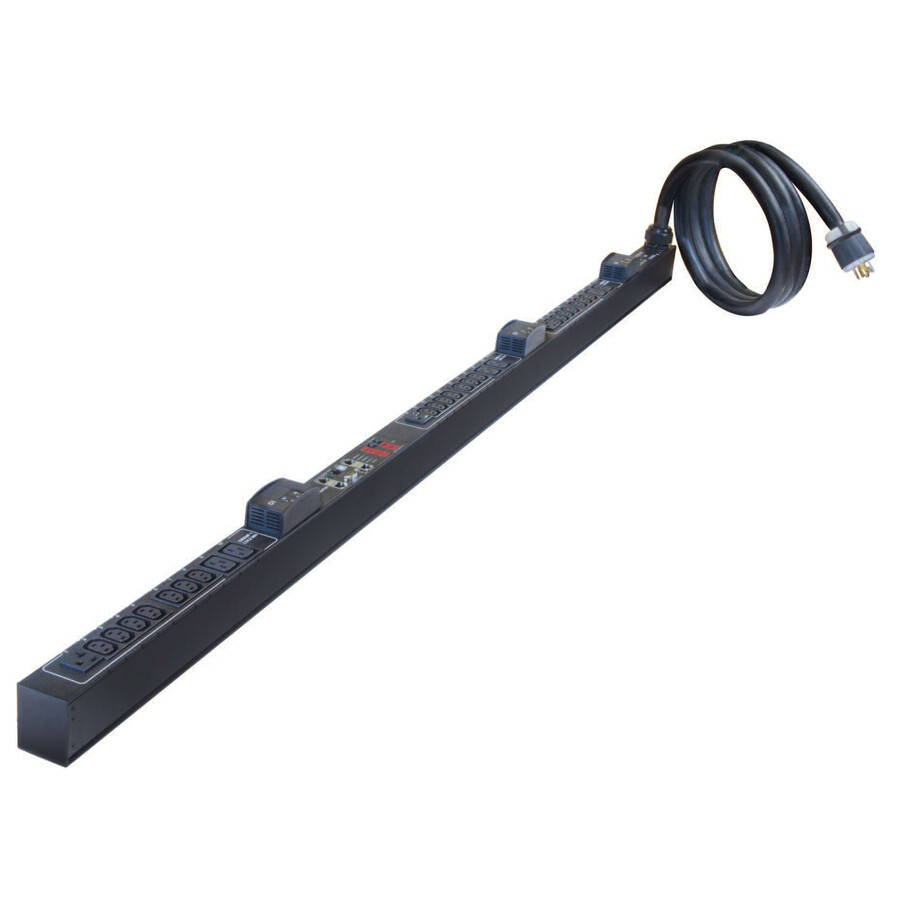

Raritan Dominion PX-2000 PX2-2496 24-Outlets 5kVA PDU

$ 1,605.49 $ 1,605.49
$ 1,605.49

$ 1,605.49 / Units
  • Brand
  • Depth
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Modem (RJ-12)
  • Protection Type
  • USB
  • Management
  • Network (RJ-45)
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Serial Port
  • Mount Type
  • Mounting Orientation
  • Input Voltage
  • Output Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Product Model
  • Manufacturer Website Address
  • Power Rating (VA)
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF User-Manual PDF

The PX-2000 series is available in Zero U (vertical mount) and 1U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. The PX-2000 supports individual outlet switching. Precise power information can be monitored, and the PX-2000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-2000 series is fully compatible with Raritan's Power IQ energy management software solutions.

  • PDU is reliable for power protection and management solutions
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • NEMA L6-30P plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for optimal performance with maximum usability
  • 208 V AC output voltage for optimal performance with maximum feasibility
Brand
Brand Legrand Group
Power & Battery
Receptacle Detail 24 x IEC 60320 C13
Receptacle Type IEC 60320 C13
Plug/Connector Type NEMA L6-30P
Input Voltage 230 V AC
Output Voltage 208 V AC
Power Rating (VA) 5000 VA
USB Ports
USB Yes
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Mount Type Rack-mountable
Mounting Orientation Vertical
General Features
Protection Type Overload Protection
Manufacturer Legrand Group
Misc Ports
Serial Port Yes
Telephony
Modem (RJ-12) Yes
Compliance & Certification
Environmentally Friendly Yes
