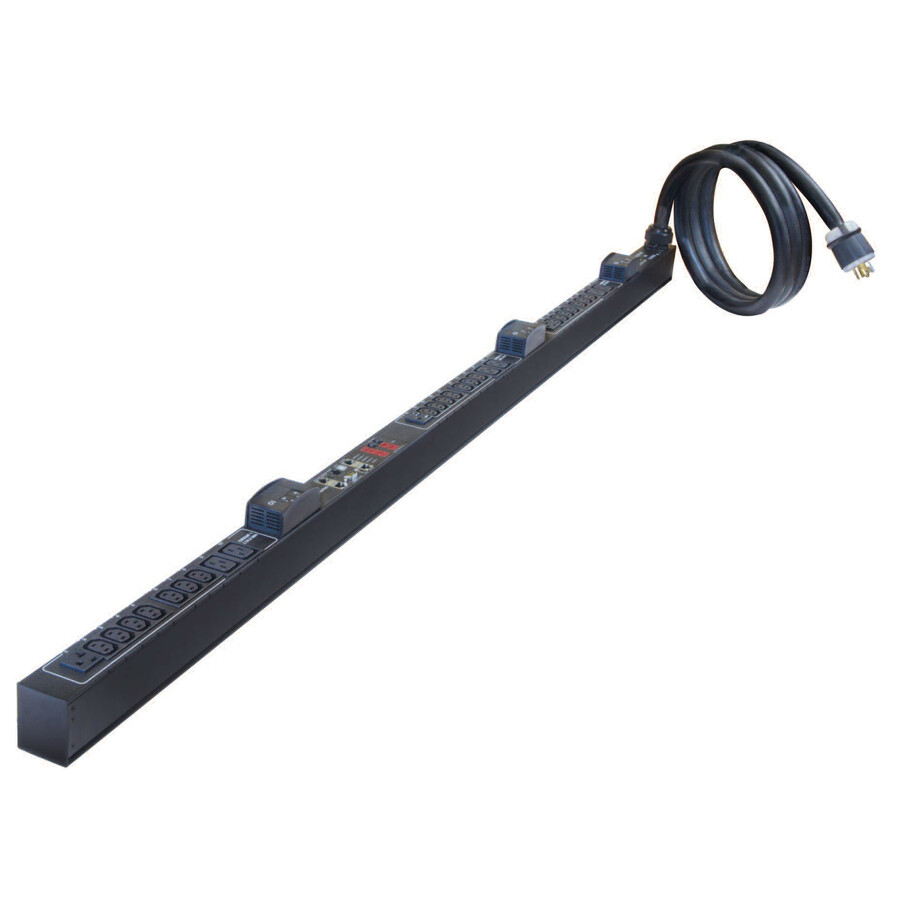

The PX-2000 series is available in Zero U (vertical mount) and 1U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. The PX-2000 supports individual outlet switching. Precise power information can be monitored, and the PX-2000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-2000 series is fully compatible with Raritan's Power IQ energy management software solutions.
- PDU provides active metering enabling energy optimization and circuit protection
- NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
- NEMA L5-20P plug/connector type for efficient connectivity and feasible power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Receptacle Detail | 24 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1900 VA |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Telephony | |
|---|---|
| Modem (RJ-12) | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
