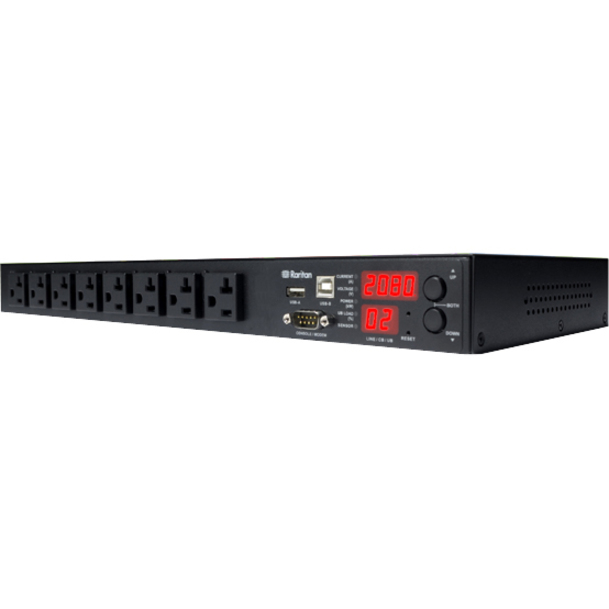

The PX-2000 series is available in Zero U (vertical mount) and 1U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. The PX-2000 supports individual outlet switching. Precise power information can be monitored, and the PX-2000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-2000 series is fully compatible with Raritan's Power IQ energy management software solutions.
- Provide circuit protection and easy configuration for trouble-free access
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- NEMA L6-20P plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | Legrand Group |
| Power & Battery | |
|---|---|
| Receptacle Detail | 8 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | NEMA L6-20P |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 3300 VA |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Telephony | |
|---|---|
| Modem (RJ-12) | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
