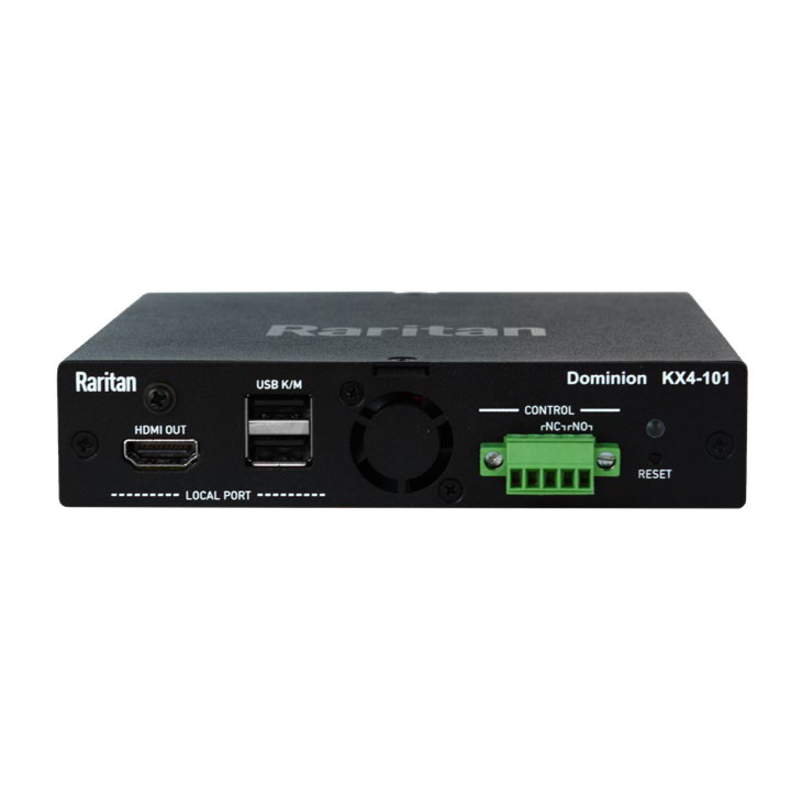

Dominion KX IV-101 - Raritan's fourth generation single-port KVM-over-IP switch Gateway, provides a new level of Ultra HD performance for KVM-over-IP remote management. More powerful than any other KVM-over-IP switch, it supports unblocked, Java-free anytime / anywhere, BIOS-level remote access of servers, PCs and workstations. The KX IV connects to a single computer, providing unblocked access to multiple users via laptop, PC or Dominion User Station.
The KX IV-101 supports access to servers with 4K video resolution (3840x2160), up to 30 frames per second with 4:2:2 color. It also supports HD resolutions up to 1920x1080 and 1920x1200 at up to 60 frames per second with high quality 4:4:4 color. The KX IV has an all-digital architecture for ultra fast video performance and high video quality, with virtual media transfers up to 3 times faster than the Dominion KX III. The KX IV has user-configurable bandwidth to operate across LAN, WAN and Internet.
The KX IV supports many of the popular Dominion features such as: virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption, support for up to 8 simultaneous sessions, and much more. Users can use the Dominion KVM Clients for Java-free access, as well as the Dominion KX User Stations for high performance access in labs, studios and control rooms.
Dominion KX IV is incredibly scalable. A large number of KX IV switches can be integrated through the Dominion User Station and/or Raritan's CommandCenter Secure Gateway, with convenient single sign-on. The powerful Dominion User Station works standalone or with CommandCenter.
Raritan DKX4-101 Features
- Single-port, unblocked, BIOS-level, KVM-over-IP Access for up to 8 users
- 4K Ultra HD (@30Hz) HDMI Video Performance
- 1080p @ 60 frames-per-second & High Quality 4:4:4 Color
- HDMI input with cables available for VGA, DVI, DisplayPort, Mini-DP & USB-C
- 3X Faster USB Virtual Media
- HDMI Audio support
- Java-Free, Anytime/Anywhere Access
- Input / Output Device Control
- Power on/off PC/Server
- Access from Laptop, PC, and optional User Station
- New Platform / User Interface
- Pass-through Local Port for local control
- CommandCenter & User Station integration
Raritan DKX4-101 Highlights
The Broadest Array of Video Support in a Single-Port IP KVM
The most compatible IP KVMs in the market, the Dominion KX4-101 Over-IP Gateways support:
- With this KVM Switchbox, avoid the constant switching of cables between sources
- Connect up to 1 computers to 1 local users
- Up to 4096 x 2160 video resolution
- Hot-pluggable USB interface for a quick connection
- KVM Switchbox can be mounted as rack-mountable
| Brand | |
|---|---|
| Brand | Legrand Group |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Local Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Number of Computers Supported | 1 |
