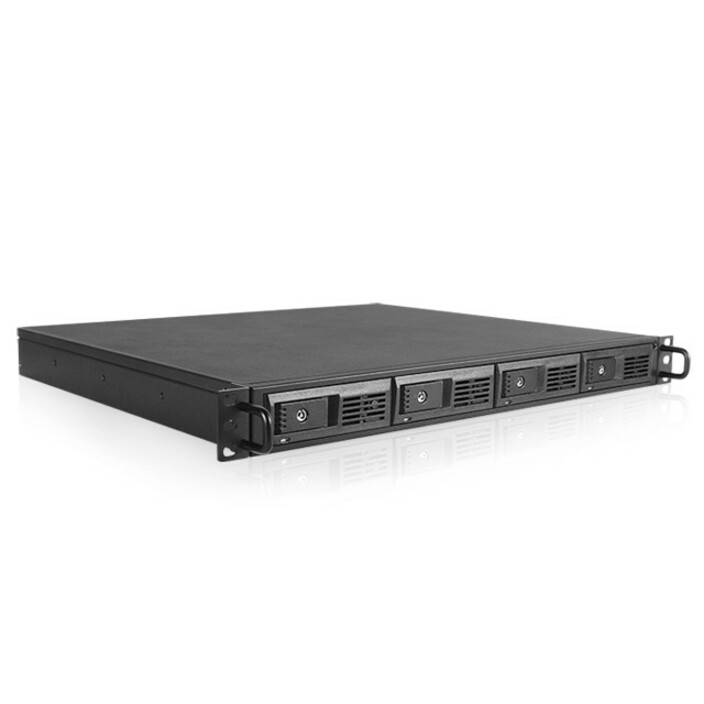

JAGEM140-HD is an external 1U-4 bay trayless hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 4 hard drives for RAID configurations in 1U form factor. This 1U-4 bay external SAS/SATA JBOD is designed with a high quality HD miniSAS (SFF8644) connectors. Two 40mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE104UTL-HD provides maximum storage and performance to high density storage system.
- Perfect solution for your storage needs. Offers great customization according to your storage needs.
- Featuring Non-RAID Mode - Data reliability, fault tolerance, and enhanced performance through jbod
- Organize wires & secure cables for professional installation with rack mounting facility
| Brand | |
|---|---|
| Brand | iStarUSA |
| Storage | |
|---|---|
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 4 |
| Non-RAID Mode | JBOD |
| Hot Swappable Bays | Yes |
| Drive Interface | SATA/600 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Manufacturer | iStarUSA, Inc |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Misc Ports | |
|---|---|
| Host Interface | Mini-SAS HD |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
