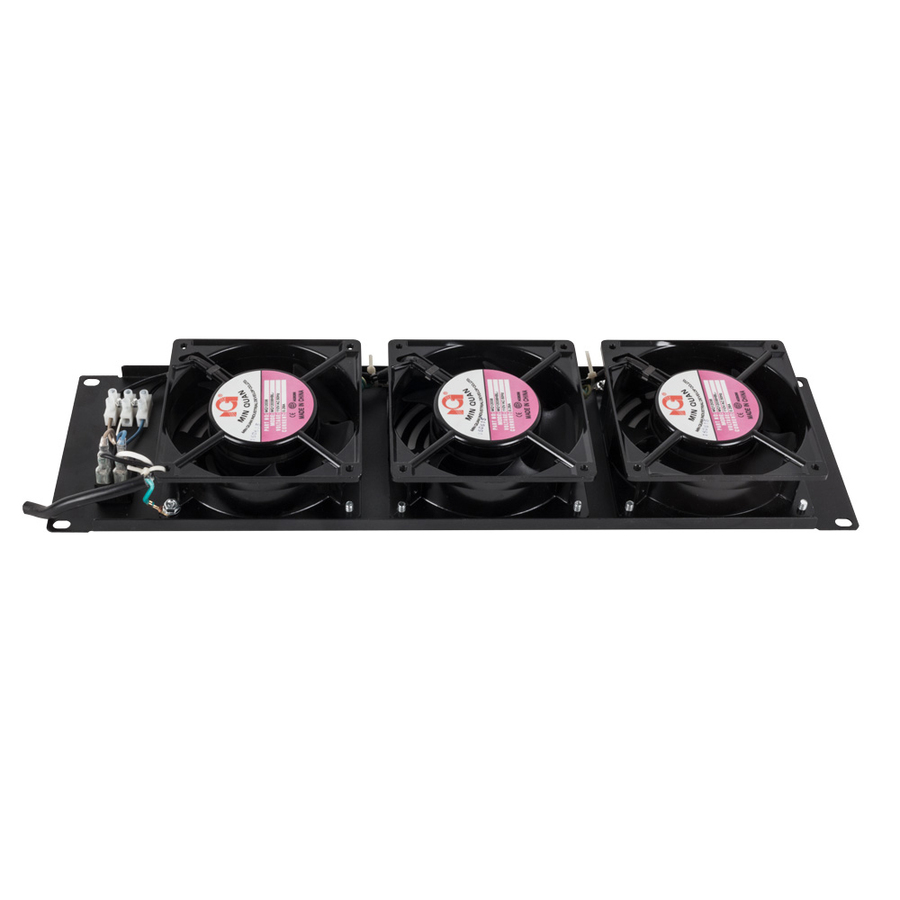

The 3U Horizontal Rack Fan panel keeps equipment in your rack cool and running at optimal operating temperatures. The fan panel is compatible with any EIA standard 19" 2 post or 4 post server rack, and occupies only 3 rack units. The fan panel comes equipped with three 120 mm fans that push hot air from equipment out of the rack, increasing cooling efficiency and helping you achieve your PUE goals. The fans are powered on and off as needed with an easy access switch on the front of the panel.
- Input frequency: 50/60 Hz
- Air Flow: 290 CFM
- Plug: NEMA 5-15P
- Operating voltage: 110V~120V AC
- Rated speed: 3000 RPM
- Noise Level: 47 dBA
- Compatible with standard EIA 19" racks
- Three 120mm fans mount within 3U of space
- Powered on and off with switch in the front
- Plugs directly into rack mounted PDU using a 6 ft cable
| Brand | |
|---|---|
| Brand | Rack Solutions |
| Size / Dimensions | |
|---|---|
| Compatible Rack Height | 3U |
| Compatible Rack Width | 19" |
| General Features | |
|---|---|
| Manufacturer | Innovation First International, Inc |
| Number of Fans | 3 |
| Maximum Air Flow | 290 CFM |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
| Environmentally Friendly | Yes |
