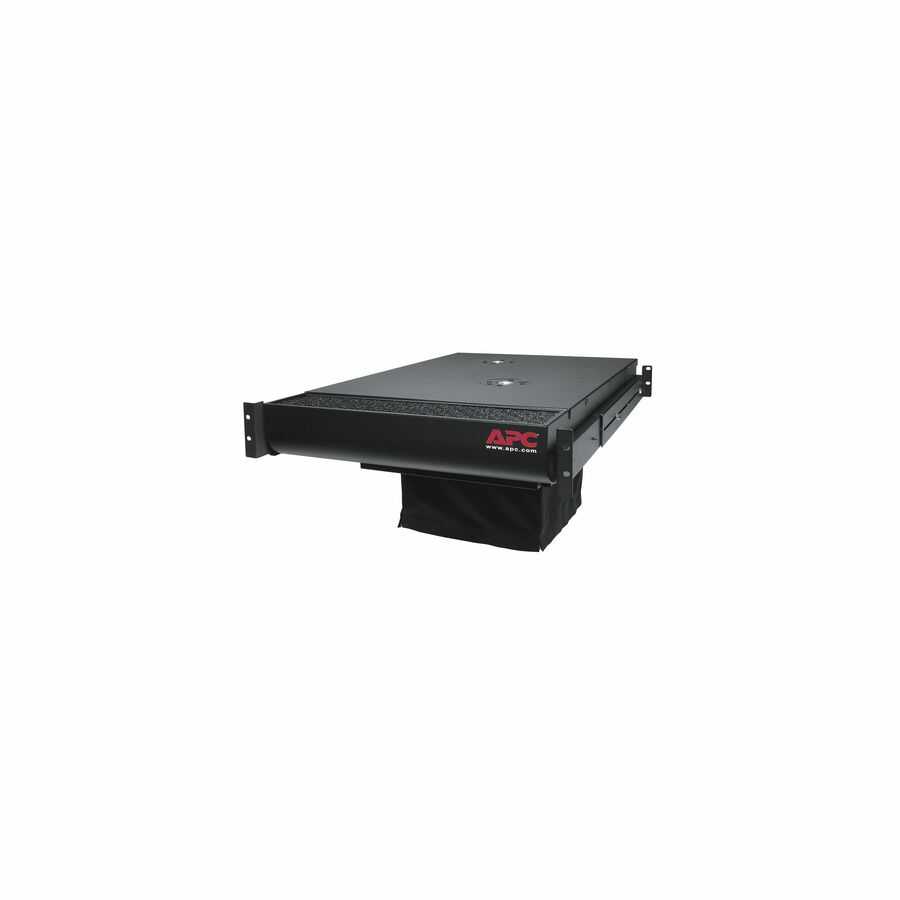

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Cooling Power Consumption | 3500 W |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C13 |
| Plug Type | NEMA 5-15P |
| Input Voltage | 120 V |
| Input Current | 2 A |
| Power Consumption | 240 W |
| Size / Dimensions | |
|---|---|
| Compatible Rack Height | 2U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Maximum Air Flow | 503 CFM |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304120742 |
| MPN | ACF001 |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
| Customer Reviews | 5.0 (4) |
