High-performance rackmount SATA 6GB/s JBOD storage enclosure, with redundant power supply

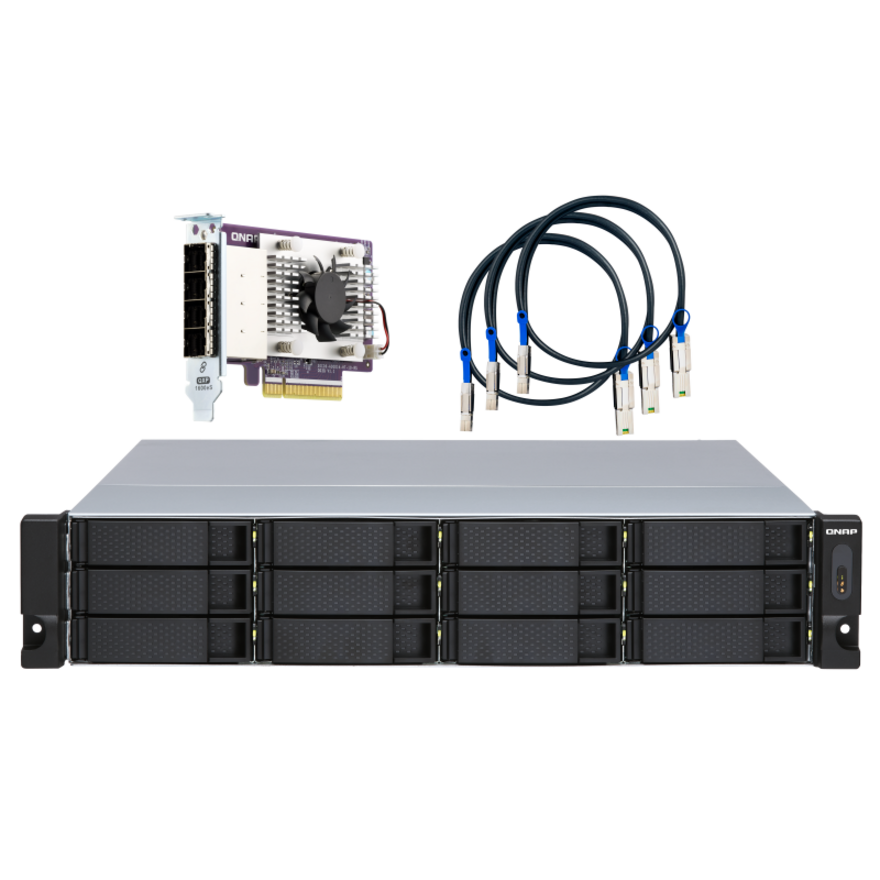

TL-R1200S-RP Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-R1200S-RP features twelve 3.5-inch SATA 6Gb/s drive bays, TL-R1200S-RP comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
-
High-capacity TL SATA JBOD not only can expand NAS storage, but also Windows® and Ubuntu® computers and servers.
-
SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
-
The 250W redundant power supply can ensure maximum system uptime.
High-performance of TL SATA JBOD
The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.
Flexible Storage Configuration and Management
The TL-R1200S-RP provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.
Use the Storage & Snapshots Manager in QTS or QTS hero to configure the TL-R1200S-RP as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-R1200S-RP, you can easily expand storage capacity.
The QNAP JBOD Manager is a desktop utility for monitoring the TL-R1200S-RP on Windows® and Ubuntu® computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.
What you need to know
You can connect your TL-R1200S-RP to Windows® and Ubuntu® computers and servers through the SFF-8088 (or SFF-8644) high-speed cable and use built-in utility to manage the RAID configuration.
Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager
The QNAP JBOD Manager is a desktop utility for monitoring the TL-R1200S-RP on Windows® and Ubuntu® computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.
Flexibly Expand Connectivity with QXP PCIe Cards
Install an exclusive QXP PCIe card onto your QNAP NAS, Windows® or Ubuntu® PC and servers to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable, for easy and flexible storage expansion.
- Perfect solution for your storage needs. Offers great customization according to your storage needs.
- Featuring Non-RAID Mode - Data reliability, fault tolerance, and enhanced performance through jbod
- Rack-mountable form factor offers comfortable usage for a longer duration
| Brand | |
|---|---|
| Brand | QNAP Systems |
| Storage | |
|---|---|
| Number of Solid State Drive I | 0 |
| Number of Hard Drives Install | 0 |
| Number of Hard Drives Support | 12 |
| Number of Solid State Drive Installed | 0 |
| Number of Hard Drives Installed | 0 |
| Non-RAID Mode | JBOD |
| Drive Interface | SATA/600 |
| Number of Hard Drives Supported | 12 |
| Number of Solid State Drive Supported | 12 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Manufacturer | QNAP Systems |
| Drive Bays | |
|---|---|
| Number of Solid State Drive S | 12 |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Misc Ports | |
|---|---|
| Host Interface | Mini-SAS |
