Two 10GbE Ports with SR-IOV and iSCSI, Block-based, Supports Multiple Virtual Disk Modes

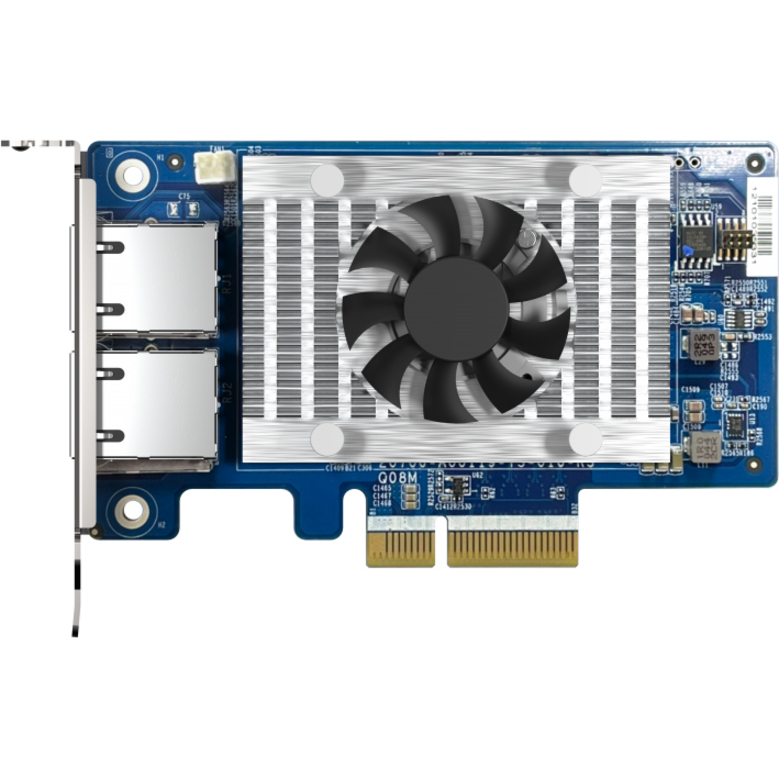

The dual port QXG-10G2T-X710 is a PCIe Gen 3 (compatible with PCIe Gen 2)10GbE network expansion card with an Intel Ethernet Controller X710 and supports up to five speeds (10G / 5G / 2.5G / 1G / 100M). By using Port Trunking, both ports can be combined to achieve up to 20Gbps transfer speeds for accelerating file sharing and intensive data transfer. With SR-IOV and iSCSI support, the QXG-10G2T-X710 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications and data centers.
Build a 10GbE Network Environment
The QXG-10G2T-X710 can be used with QNAP's 10GbE switches, such as the QSW-M2108-2C or QSW-1208-8C, for you to build a budget-friendly high-speed network environment.
- 10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
- PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | QNAP Systems |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | QNAP Systems |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Host Interface | PCI Express 3.0 x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
|---|---|
| Product Name | QXG-10G2T-X710 10Gigabit Ethernet Card |
